| 產品廠牌 |
ASUS華碩 |
| 型號 |

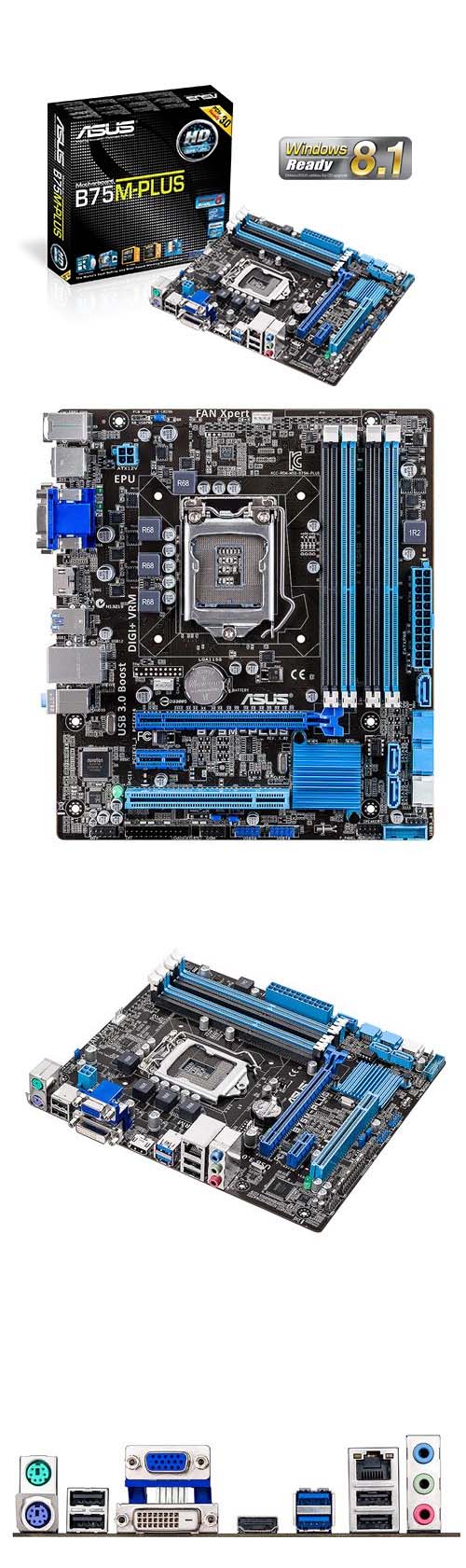

B75M-PLUS |
| CPU |

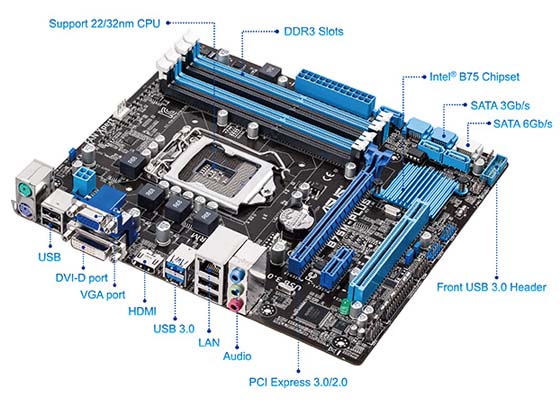

- Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
- Supports Intel® 22 nm CPU
- Supports Intel® 32 nm CPU
- Supports Intel® Turbo Boost Technology 2.0
- * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
|
| Chipset |
Intel® B75 |
| Memory |
- 4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- * 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
- * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
- * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
- * Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.
|
| Graphic |
- Integrated Graphics Processor
- Multi-VGA output support : HDMI/DVI-D/RGB ports
- - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
- Maximum shared memory of 1024 MB
|
| Expansion Slots |
- 1 x PCIe 3.0/2.0 x16
- 1 x PCIe 2.0 x1
- 1 x PCI
|
| Storage |
- Intel® B75 chipset :
- 1 x SATA 6Gb/s port(s), gray
- 5 x SATA 3Gb/s port(s), blue
|
| LAN |
Realtek® 8111G, 1 x Gigabit LAN Controller(s) |
| Audio |
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function |
| USB Ports |
- Intel® B75 chipset :
- 4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
- Intel® B75 chipset :
- 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
|
| Special Features |
- ASUS Digital Power Design :
- - Industry leading Digital 3 +1 Phase Power Design
- - ASUS DIGI+ VRM Utility
- ASUS Power Design :
- - ASUS EPU
- GPU Boost
- ASUS Exclusive Features :
- - AI Suite II
- - Ai Charger
- - Anti-Surge
- - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- - Network iControl
- - USB 3.0 Boost
- ASUS Quiet Thermal Solution :
- - ASUS Fan Xpert
- ASUS EZ DIY :
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 2
- - ASUS MyLogo 2
- 100% All High-quality Conductive Polymer Capacitors
|
| Back I/O Ports |
- 1 x PS/2 keyboard (purple)
- 1 x PS/2 mouse (green)
- 1 x DVI-D
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.0
- 4 x USB 2.0
- 3 x Audio jack(s)
|
| Internal I/O Ports |
- 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x COM port(s) connector(s)
- 1 x SATA 6Gb/s connector(s)
- 5 x SATA 3Gb/s connector(s)
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 1 x Chassis Fan connector(s) (1 x 4 -pin)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x parallel port connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Internal speaker connector(s)
- 1 x System panel(s)
|
| Accessories |
- User's manual
- I/O Shield
- 1 x SATA 3Gb/s cable(s)
- 1 x SATA 6Gb/s cable(s)
|
| BIOS |
64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3 |
| Manageability |
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Support Disc |
- Drivers
- ASUS Utilities
- ASUS Update
- Anti-virus software (OEM version)
|
| Form Factor |
- mATX Form Factor
- 8.9 inch x 7.8 inch ( 22.6 cm x 19.8 cm )
|
| 保固 |
三年保固
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
