| 廠牌 |
ASUS華碩 |
| 型號 |

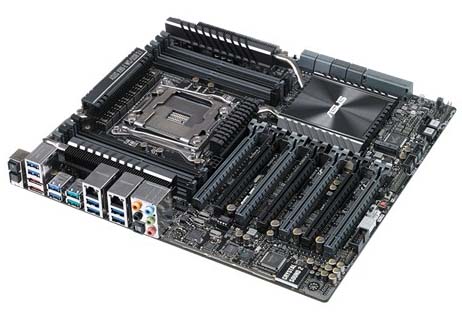

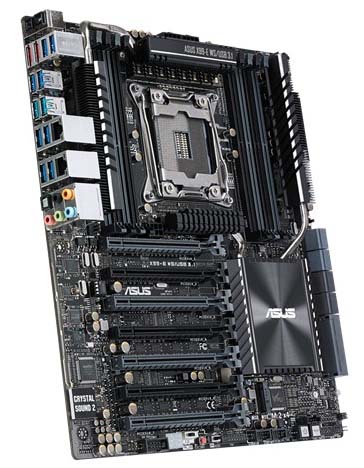

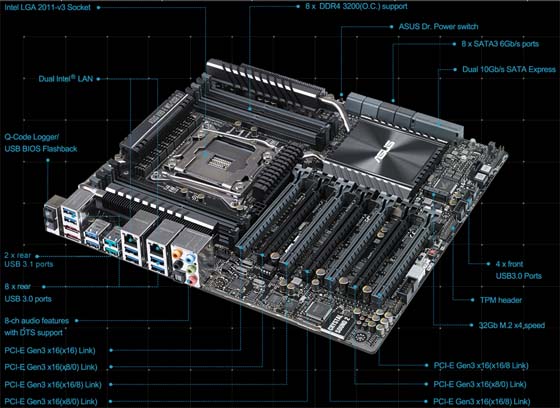

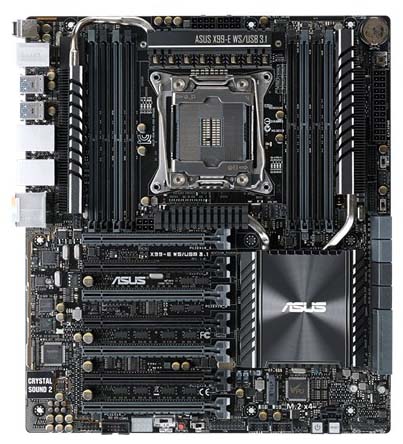

X99-E WS/USB3.1 |
| CPU |
- Intel® Socket 2011-v3 Core™ i7 處理器
- 支援 Intel® 22 nm CPU
- 支援 Intel® Turbo Boost 技術2.0
- * 是否支援 Intel® Turbo Boost Technology 2.0，需視 CPU 類型而定。
- Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v3 product family
- Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v3 product family
|
| 晶片組 |
Intel® X99 |

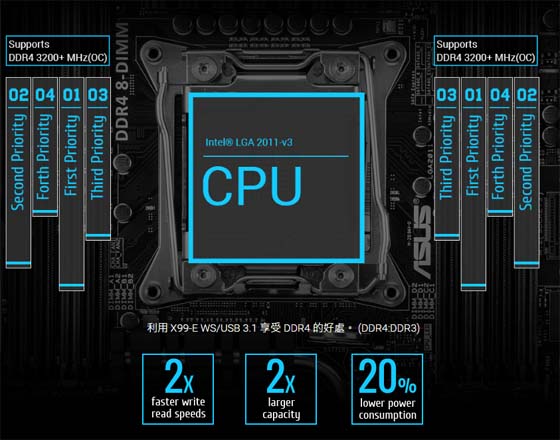

| 記憶體 |
- 8 x DIMM, 最高可支援到128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz 非ECC, 無緩衝區 記憶體
- Quad Channel 記憶體架構
- 8 x DIMM, Max. 128GB, DDR4 2133/1866 MHz ECC, 無緩衝區 Memory *2
- *是否支援 Hyper DIMM 需視個別 CPU 的實體特性而定。
- 支援 Intel® Extreme Memory Profile (XMP)
|
| 多GPU支援 |
- 支援 NVIDIA® 4-Way SLI™ 技術
- 支援 AMD 4-Way CrossFireX 技術
|

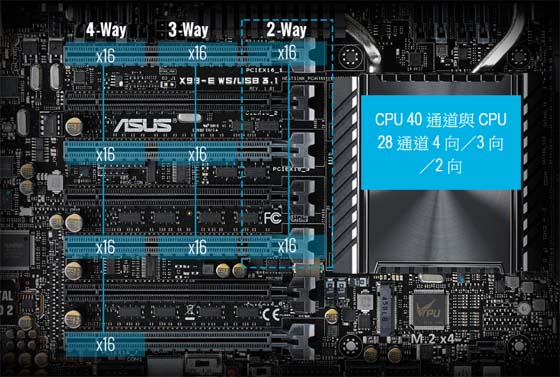

| 擴充槽 |
7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) |
| 資料儲存應用 |
- Intel® X99 chipset : *3
- 1 x SATA Express port, 灰色, , Compatible with 2 x SATA 6.0 Gb/s ports
- 1 x M.2 x4 Socket 3, 灰色, , with M Key, type 2260/2280 storage devices support (PCIE mode)
- 8 x SATA 6Gb/s埠, 灰色, *4
- Intel® Rapid Storage Technology supports*5
- ASMedia® SATA Express controller : *6
- 1 x SATA Express port, 灰色, , Compatible with 2 x SATA 6.0 Gb/s ports
- ASMedia® SATA 6Gb/s controller :
- 2 x eSATA 6Gb/s 連接埠, Compatible with 2 x SATA 6.0 Gb/s ports
|
| 區域網路 |
- Intel® I210-AT, 1 x Gigabit 區域網路控制器
- Intel® I218LM, 1 x Gigabit LAN, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
|
| 音效 |
- Realtek® ALC1150 8 通道 高傳真音效 CODEC
- - 支援 : 插頭偵測, 多路音頻輸出輸入, 前面板插孔指定功能, Front Panel MIC Jack-retasking
- - High quality 109 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
- - High-fidelity audio OP AMP(s)

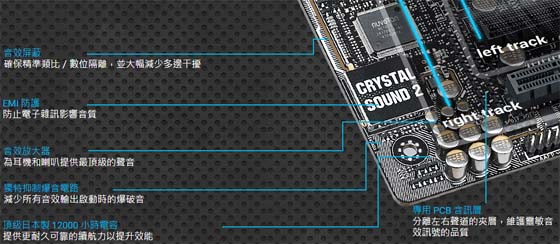

- Audio Feature :
- - 光纖 S/PDIF 輸出埠位於背板
- - DTS Ultra PC II
- - DTS Connect
- - BD Audio Layer Content Protection
- - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- - Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made 12K hours capacitors
- - Absolute Pitch 192khz/24bit true BD lossless sound
- Separate layer for left and right track, ensuring both sound deliver equal quality
|
| USB連接埠 |
- Intel® X99 chipset :
- 4 x USB 3.0/2.0 連接埠 (4 位於背板, +藍色)
- Intel® X99 chipset :
- 4 x USB 2.0/1.1 連接埠 (4 位於主機板中)
- ASMedia® USB 3.1 controller :
- 2 x USB 3.0/2.0 連接埠 (2 位於背板, teal blue)
- ASMedia® USB 3.0 控制器 :
- 8 x USB 3.0/2.0 連接埠 (4 位於背板, , 4 位於主機板中)
|
| xDSL 資料傳輸速率 |
- 7 x PCIe x 16 插槽
- ASUS Dr. Power
- 12K hours Capacitors
- ProCool Power Connector
- Q-Code Logger
- ASUS PIKE SAS upgrade kit(選購)
|
| 獨特功能 |
- ASUS TPU :
- - Auto Tuning
- - GPU Boost
- - TPU switch
- 5-Way Optimization by Dual Intelligent Processors 5
- - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
- 華碩 EPU :
- - EPU
- - EPU switch
- 華碩數位電源設計:
- - Industry leading Digital 8 Phase Power Design
- - Industry leading Digital 4 Phase DRAM Power Design
- - CPU Power Utility
- - DRAM Power Utility
- 華碩獨家功能 :
- - MemOK!
- - AI Suite 3
- - Ai Charger+
- - 華碩 EFI BIOS EZ 模式提供簡單易用的使用者介面
- - USB Charger+
- - M.2 & SATA Express
- - USB 3.1 Boost
- - 硬碟容量解鎖
- - Turbo LAN
- - Crystal Sound 2
- 華碩 EZ DIY :
- - Precision Tweaker 2
- - 華碩 CrashFree BIOS
- - 華碩 EZ Flash
- - ASUS O.C. Tuner
- - ASUS USB BIOS Flashback
- - ASUS UEFI BIOS EZ Mode
- - Push Notice
- 華碩 Q-Design :
- - 華碩 Q-LED (CPU, DRAM, VGA, Boot Device LED)
- - 華碩 Q-Code
- - ASUS Q-Shield
- - 華碩 Q-Slot
- - 華碩 Q-DIMM
- - 華碩 Q-Connector
- Remote Entertainment
- - Media Streamer
- Media Streamer
- Special Memory O.C. Design
- Turbo App
- Fan Xpert 3
|
| Operating System Support |
- Windows® 8.1
- Windows® 8
- Windows® 7
|

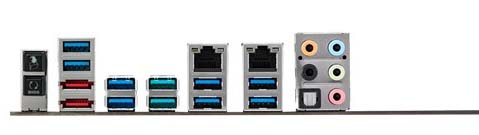

| 後面板輸出端子 |
- 2 x eSATA
- 2 x LAN (RJ45) 連接埠
- 1 x 光纖 S/PDIF 輸出
- 8 x 音訊插孔
- 2 x USB 3.1 (teal blue)
- 8 x USB 3.0 (藍色)
- 1 x USB BIOS Flashback Button(s)
- 1 x Q-Code Logger button
|
| 內建 I/O 連接孔 |
- 2 x USB 3.0 接頭支援額外的 4 USB 3.0 連接埠 (19-pin)
- 2 x USB 2.0 接頭支援額外的 4 USB 2.0 連接埠
- 1 x TPM 接頭
- 8 x SATA 6Gb/s 接頭
- 2 x SATA Express connector: 灰色, Compatible with 2 x SATA 6.0 Gb/s ports
- 1 x M.2 Socket 3 for M Key, type 2260/2280 devices
- 1 x CPU 風扇接頭 (1 x 4 -pin)
- 4 x 機殼風扇接頭 (4 x -pin)
- 1 x S/PDIF 輸出接頭
- 1 x 24-pin EATX 電源接頭
- 1 x 8-pin ATX 12V 電源接頭
- 1 x 前面板接頭
- 1 x 系統面板 (Q-Connector)
- 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
- 1 x MemOK! 按鈕
- 1 x 熱感測器接頭
- 1 x Thunderbolt header(s)
- 2 x 8-pin EATX 12 V Power connector
- 1 x 6-pin EATX 12 V_1 Power connector(s)
- 1 x TPU 開關
- 1 x EZ XMP switch
- 1 x Power-on 按鈕
- 1 x Reset 按鈕
- 1 x DRCT header(s)
- 1 x CPU/DRAM overvoltage jumper(s)
- 1 x Clear CMOS button(s)
- 1 x Dr.Power switch(es)
- 1 x 3-pin CHASSIS(Chassis intrusion) connector
|
| 配件 |
- 使用者手冊
- 華碩 Q-Shield
- 12 x Serial ATA 6.0Gb/s 纜線
- 1 x 3-Way SLI 橋接卡
- 1 x Q-connector(s) (2 合一)
- 1 x 2 埠 USB 2.0 模組
- 1 x COM port cable(s)
- 1 x 4-Way SLI bridge(s)
|

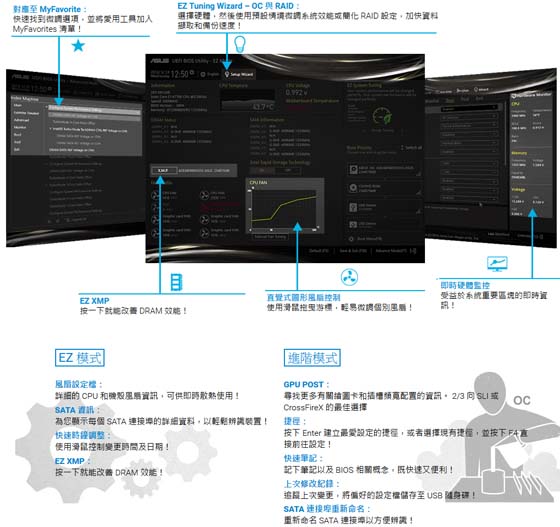

| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log,
F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| 管理能力 |
WfM 2.0, DMI 2.7, WOL by PME, PXE |
| 支援光碟 |
Drivers、ASUS Utilities、EZ Update 、Anti-virus software (OEM version) |
| 主機板尺寸 |
- CEB 主機板尺寸
- 12 吋 x 10.5 吋 ( 30.5 公分 x 26.7 公分 )
|
| 重量 |
- Color Box (3-in-1)
- Net Weight : 6.02 KG
- Gross Weight : 9 KG
- Bulk Pack (5-in-1)
- Net Weight : 7.5 KG
- Gross Weght : 10.2 KG
|
| 運作環境 |
- Operation temperature: 10℃ ~ 35℃
- Non operation temperature: -40℃ ~ 70℃
- Non operation humidity: 20% ~ 90% ( Non condensing)
|
| 備註 |
- *1 安裝 Intel® Socket 2011-v3 Core™ i7 Processors
- *2 安裝 Intel® Xeon® E5-1600 v3/2600 v3 Processor
- *3 Intel® X99 Express 晶片組包含 RAID 0, 1, 5, 10 與 4組 Intel Rapid Storage Technology 13 support，8 x SATA 6.0 Gb/s 連接埠* (4 組 controller 1 gray , 4 組 controller 2 black)
- *5 功能運作會依據CPU 安裝而有所不同
- *6 SATA 連接埠僅供資料硬碟使用，不支援 ATAPI 裝置。
|
| 保固 |
三年保固 |
