| 產品廠牌 |
ASUS華碩 |
| 型號 |

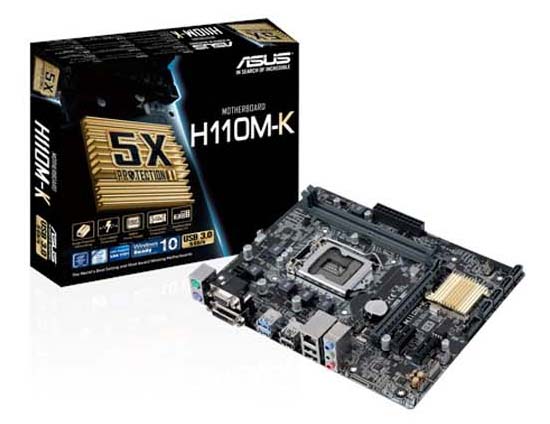

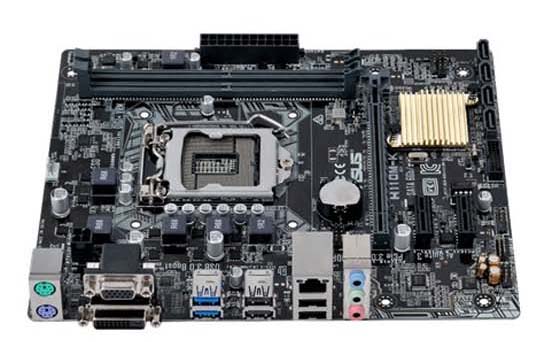

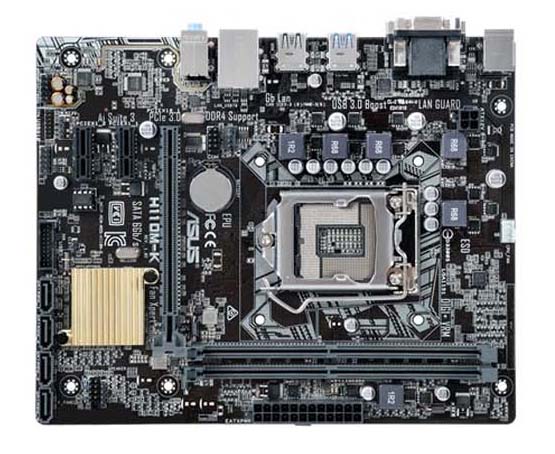

H110M-K |
| 中央處理器 |
- Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0
- * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
- * Refer to www.asus.com for CPU support list
|
| 晶片組 |
Intel® H110 |
| 記憶 |
- 2 x DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory *
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
- * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- * The maximum memory frequency supported varies by processor.
|
| 圖像 |
- Integrated Graphics Processor- Intel® HD Graphics support
- Multi-VGA output support : DVI-D/RGB ports
- - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Maximum shared memory of 1024 MB
- Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
|
| 擴充槽 |
- 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
- 2 x PCIe 2.0 x1
|
| 存儲 |
- Intel® H110 chipset :
- 4 x SATA 6Gb/s port(s), gray
|
| 局域網 |
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| 音頻 |
- Realtek® ALC887 8-Channel High Definition Audio CODEC *1
- - Supports : Jack-detection, Front Panel Jack-retasking

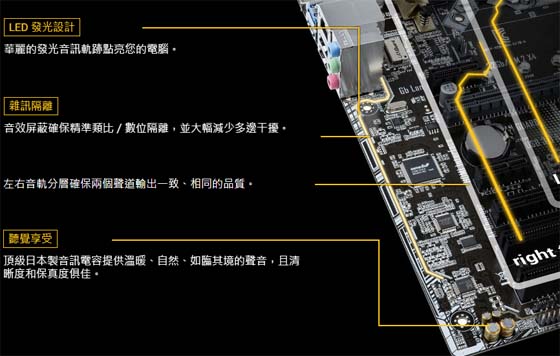

- Audio Feature :
- - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
|
| USB端口 |
- Intel® H110 chipset :
- 6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board)
- Intel® H110 chipset :
- 4 x USB 3.0/2.0 port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
|
| 特殊功能 |

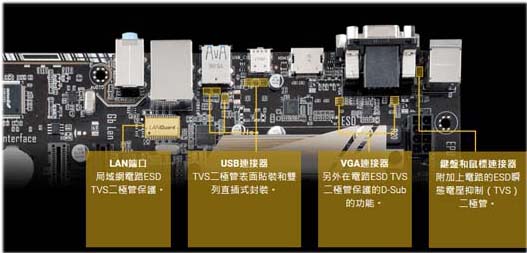

- ASUS 5X Protection II :
- - ASUS LANGuard - 2.5X higher surge tolerance
- - ASUS Overvoltage Protection - World-class circuit
- -protecting power design
- - ASUS DIGI+ VRM - 5 Phase digital power design
- - ASUS DRAM Overcurrent Protection - Prevents damag
- e from short circuits
- - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
- ASUS EPU :
- - EPU
- ASUS Exclusive Features :
- - AI Suite 3
- - Ai Charger
- - Anti-Surge
- - USB 3.0 Boost
- - Disk Unlocker
- - Mobo Connect
- - PC Cleaner

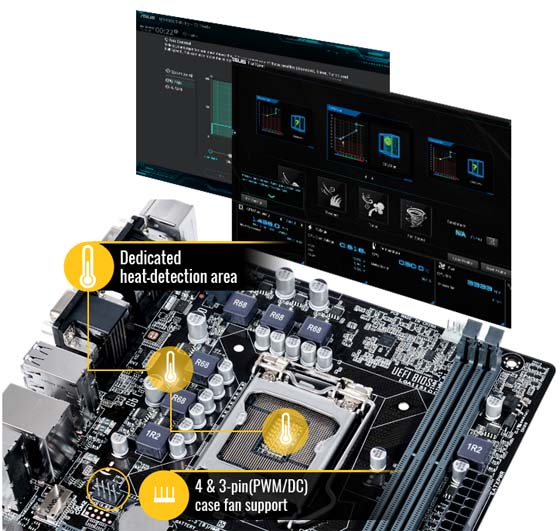

- ASUS Quiet Thermal Solution :
- - Stylish Fanless Design Heat-sink solution
- - ASUS Fan Xpert
- ASUS EZ DIY :
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
- - Push Notice
- ASUS Q-Design :
- - ASUS Q-Slot
- - ASUS Q-DIMM
- Media Streamer
|
| 操作系統支持 |
- Windows® 10 , 64bit
- Windows® 8.1 , 64bit
- Windows® 7 , 32bit/64bit *2
|

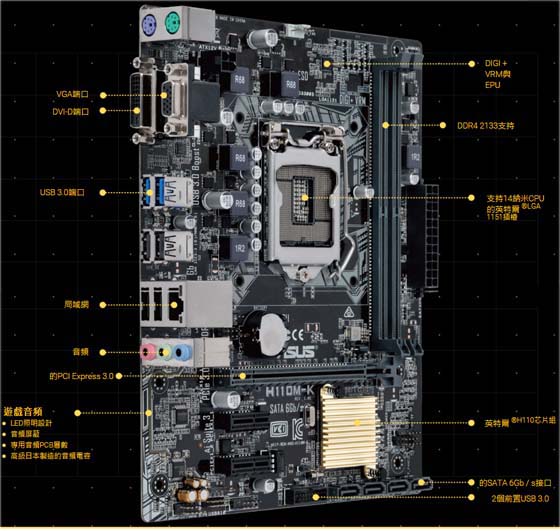

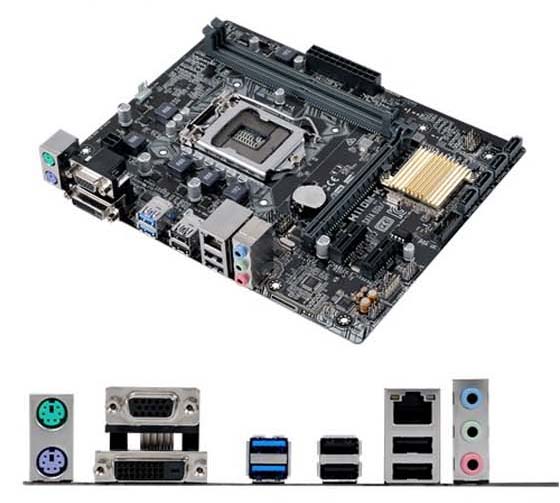

| 背板I / O端口 |
- 1 x PS/2 keyboard (purple)
- 1 x PS/2 mouse (green)
- 1 x DVI-D
- 1 x D-Sub
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.0 (blue) Type-A
- 4 x USB 2.0
- 3 x Audio jack(s)
|
| 內部I / O端口 |
- 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
- 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
- 1 x COM port(s) connector(s)
- 4 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 1 x Chassis Fan connector(s) (1 x 4 -pin)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s)
- 1 x Clear CMOS jumper(s)
- 1 x 14-1 pin TPM connector
|
| 配件 |
- User's manual
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x Supporting DVD
|
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| 可管理性 |
WfM 2.0, DMI 3.0, WOL by PME, PXE |
| 支持光盤 |
- Drivers
- ASUS Utilities
- EZ Update
- Anti-virus software (OEM version)
|
| 尺寸 |
- mATX Form Factor
- 8.9 inch x 7.2 inch ( 22.6 cm x 18.3 cm )
|
| 注意 |
- *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
- *2: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
|
| 保固 |
三年保固
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
