廠牌 |
ASUS華碩 |
型號 |

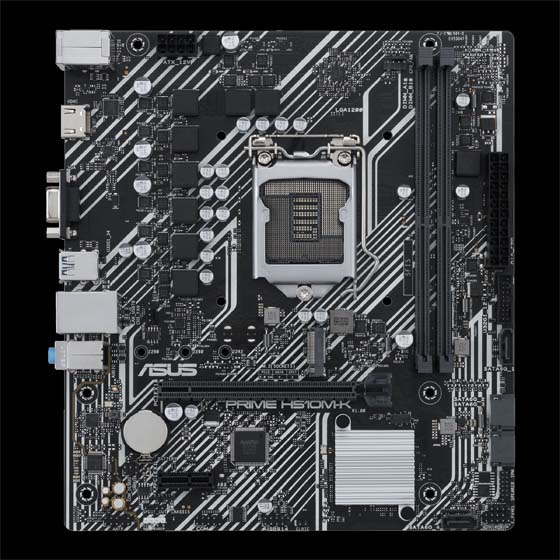

PRIME H510M-K |
CPU |
- Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset |
Intel® H510 Chipset |
Memory |
- Max Memory Size:128GB
- DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
Graphics |
- 1 x D-Sub
- 1 x HDMI™ 1.4 / 2.0**
* Graphics specifications may vary between CPU types.
** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. |
Expansion Slots |
- Intel® 11th & 10th Gen Processors
- 1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16
- Intel® H510 Chipset
- 1 x PCIe 3.0 x1 slot
|
Storage |
- Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
- Intel® H510 Chipset

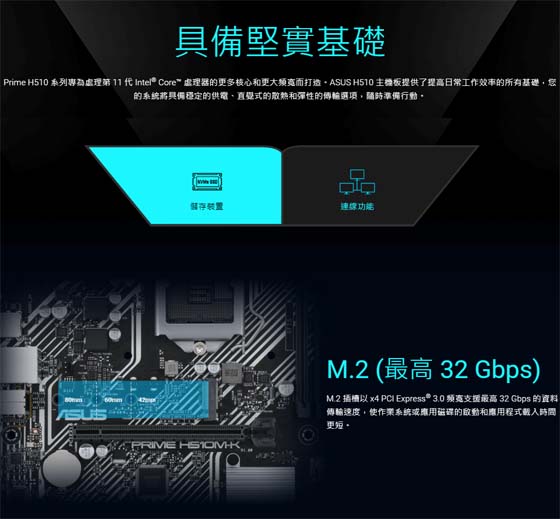

- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
* The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used. |
Ethernet |
1 x Intel® I219-V 1Gb Ethernet
ASUS LANGuard |
USB |
- Rear USB:Total 6 ports
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB:Total 4 ports
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports additional 2 USB 2.0 ports
|
Audio |
- Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
- Audio Features
- Audio Shielding
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

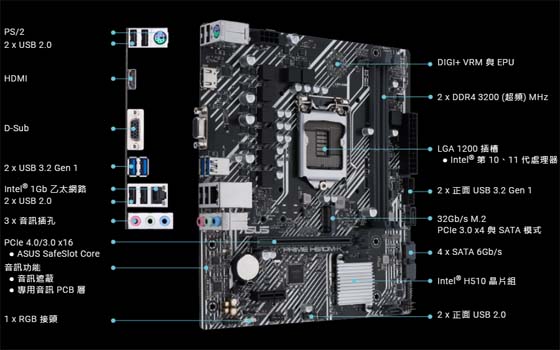

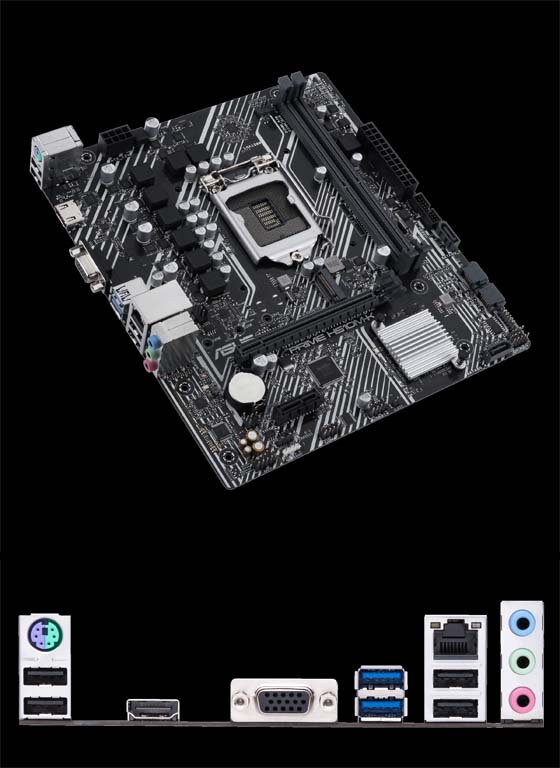

Back Panel I/O Ports |
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x D-Sub port
- 1 x HDMI™ port
- 1 x Intel® I219-V 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
|
Intrernal I/O Connectors |

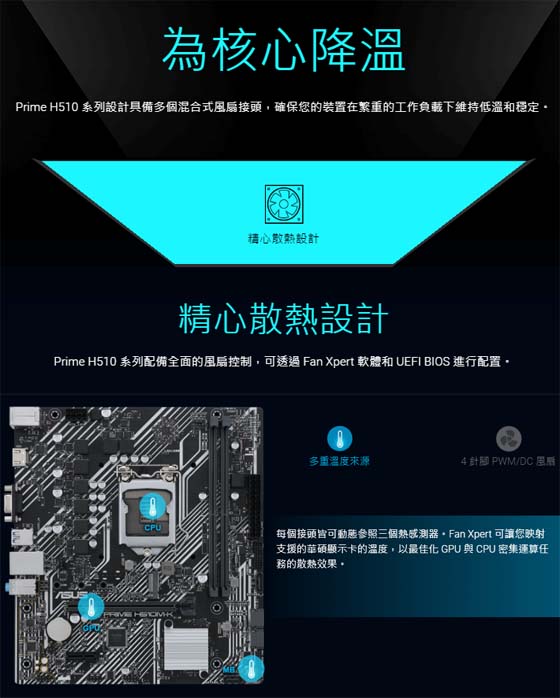

- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports additional 2 USB 2.0 ports
- Miscellaneous
- 1 x RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
|
Special Features |
- ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
- ASUS Q-Design
- Q-DIMM
- Q-Slot
- ASUS Thermal Solution
- Aluminum heatsink design
- ASUS Lighting Control
- RGB header |
Software Features |
- ASUS Exclusive Software
- Armoury Crate
- AI Suite 3
- Performance And Power Saving Utility
- TurboV EVO
- EPU
- DIGI+ VRM
- Fan Xpert
- EZ update
- ASUS CPU-Z
- AI Charger
- DAEMON Tools
- Norton Anti-virus software (Free Trial version)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O Shield
- 1 x M.2 ANCHOR
- Installation Media
- 1 x Support DVD
- Documentation
- 1 x User manual
|
Operating System |
Windows 10 64 位元 |
Form Factor |
mATX Form Factor
22.6cm x 20.3cm |
保固 |
三年保固 |
|
※保固期有可能會變更或終止,恕不另行通知,以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤,恕不另行通知,以原廠所公佈資料為準。 |
