| 廠牌 |
ASUS華碩 |
| 型號 |

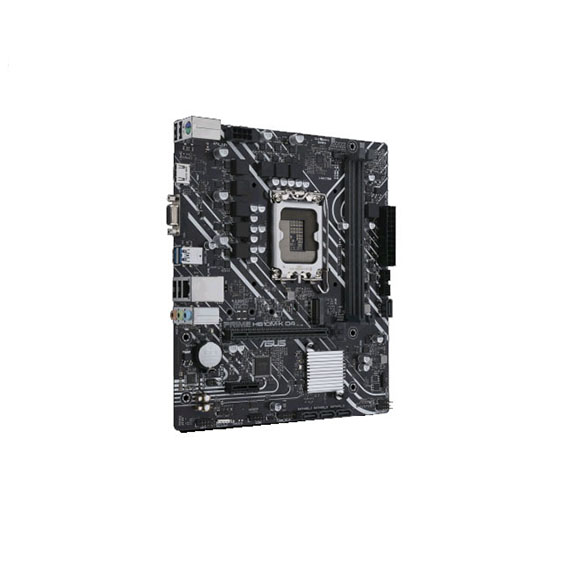

PRIME H610M-K D4-CSM |
| CPU |
- Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list。
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types。
|
| Chipset |
Intel® H610 Chipset |
| Memory |
- 2 x DIMM, Max. 64GB, DDR4
3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*"
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
"*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
| Graphics |
- 1 x D-Sub port
- 1 x HDMI® port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports 4K@60Hz as specified in HDMI 2.1.
|
| Expansion Slots |
- 1 x PCIe 4.0 x16 slot
Intel® 12th Gen Processors
- 1 x PCIe 3.0 x1 slot
Intel® H610 Chipset *
|
| Storage |
- Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
- Intel® H610 Chipset
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
* The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.
|
| Ethernet |
1 x Realtek 1Gb Ethernet |
| USB |
- Rear USB:Total 6 ports
- 2 x USB 3.2 Gen 1 port(2 x Type-A )
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB:Total 4ports
- 1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports
- 1x USB 2.0 headers support additional 2 USB 2.0 ports
|
| Audio |
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback"
- Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

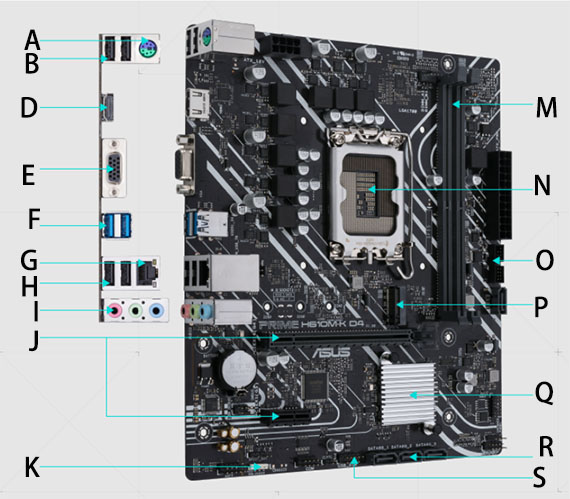

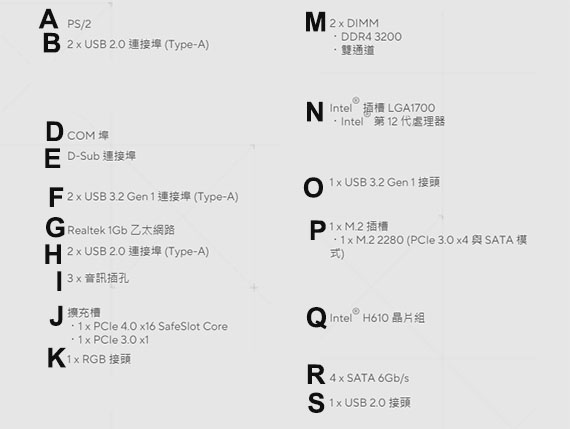

| Back Panel I/O Ports |
- 2 x USB 3.2 Gen 1 port (2 x Type-A )
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x D-Sub port
- 1 x HDMI® port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
|
| Internal I/O Connectors |
- Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
- Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
- Storage related
1x M.2 slots (Key M)
4 x SATA 6Gb/s ports
- USB
1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers support 2 USB 2.0 ports
- Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header |
| Special Features |
- ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot Core
Stainless-Steel Back I/O
- ASUS Q-Design
Q-DIMM
Q-Slot

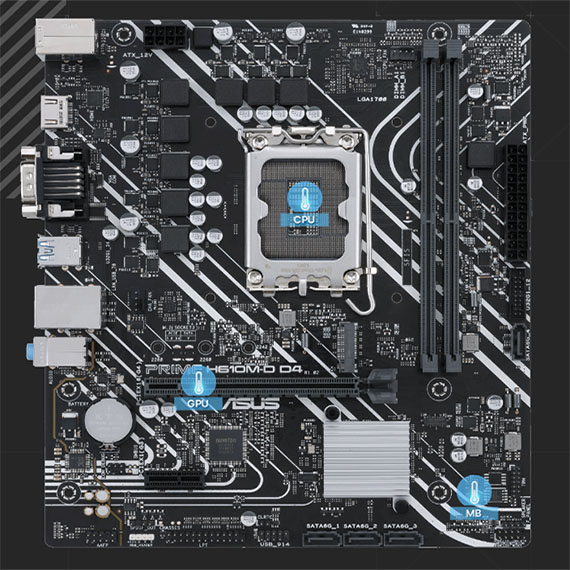

- ASUS Thermal Solution
Aluminum heatsink design
- ASUS Lighting Control
RGB header
|
| Software Features |
- ASUS Exclusive Software
- Armoury Crate
- AI Suite 3
Performance And Power Saving Utility
- TurboV EVO
- EPU
- Digi+ VRM
- Fan Xpert
- ASUS CPU-Z
IT Management software supported
ASUS Control Center Express(ACCE)
- Norton Anti-virus software (Free Trial version)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
|
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Accessories |
- Cables
2x SATA 6Gb/s cables
- Miscellaneous
1 x I/O Shield
1 x M.2 ANCHOR
- Installation Media
1 x Support DVD
- Documentation
1 x ACC Express Activation Key Card
1 x User Guide
|
| Operating System |
Windows® 11 64-bit, Windows® 10 64-bit
|
| Form Factor |
mATX Form Factor
23.4cm x 20.3cm |
| 保固 |
三年保固 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
