| 廠牌 |
ASUS華碩 |
| 型號 |
ROG STRIX B760-G GAMING WIFI D4 |
| CPU |
Intel® Socket LGA1700 for 13th Gen Intel®
Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors
Supports Intel® Turbo Boost Technology 2.0and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
| Chipset |
Intel® B760 Chipset |
| Memory |
4 x DIMM, Max. 128GB, DDR4
5333(OC)/5066(OC)/5000(OC)/
4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/
3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/
2933/2800/2666/2400/2133
MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
* Supported memory types, data rate(Speed),and number of DRAM module vary depending on the CPU and memory configuration,for more information refer to www.asus.com for memory support list.
* Refer to www.asus.com for the Memory QVL(Qualified Vendors Lists).
|
| Graphics |
1 x DisplayPort**
1 x HDMI®***
* Graphics specifications may vary between CPU types.
Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in DisplayPort 1.4
*** Support 4K@60Hz as specified in HDMI 2.1.
|
| Expansion Slots |
Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot(s)
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 4.0 x1 slots
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
|
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports
SATA RAID 0/1/5/10.
|
| Ethernet |
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
|
| Wireless & Bluetooth |
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
|
| USB |
Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header supports additional 4 USB 2.0 ports
|
| Audio |
ROG SupremeFX 7.1-Channel High
Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection,Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
- Audio cover
* Due to limitations in HAD bandwidth,
32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
|

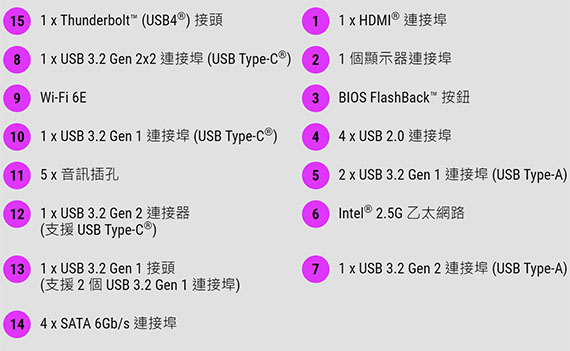

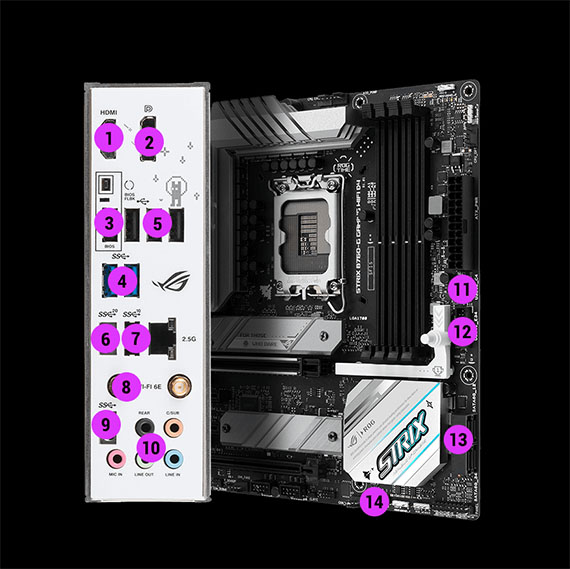

| Back Panel I/O Ports |
- 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
- 1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
- 3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)
- 4 x USB 2.0 port(s) (4 x Type-A)
- 1 x HDMI® port
- 1 x DisplayPort
- 1 x Wi-Fi Module
- 1 x Intel® 2.5Gb Ethernet
- 5 x Audio jacks
- 1 x BIOS FlashBack™ button
|
| Internal I/O Connectors |
- Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan header(s)
- Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
- Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
- USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4
USB 2.0 ports
- Miscellaneous
3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with
- Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
|
| Special Features |
- Extreme Engine Digi+
- 5K Black Metallic Capacitors
- ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA[white], Boot Device [yellow green])
- Q-Slot
- ASUS Thermal Solution
- M.2 heatsink
- ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
-CPU
- Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
- AURA Sync
- Aura RGB header
- Addressable Gen 2 header
|
| Software Features |
- ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
- Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- ASUS Exclusive Software
- Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
- Power Saving
- AI Suite 3
- Performance And Power Saving Utility
- DIGI+ VRM
- PC Cleaner
- MyAsus
- Norton 360 for Gamers
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- MemTest86
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Accessories |
- Cables
2 x SATA 6Gb/s cables
- Additional Cooling Kit
1 x Thermal pad for M.2
- Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
- Documentation
1 x User manual
|
| Operating System |
Windows® 11, Windows® 10 64-bit |
| Form Factor |
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| 保固 |
3年 |
