| 廠牌 |
ASUS華碩 |
| 型號 |
ROG STRIX B760-G GAMING WIFI |
| CPU |
Intel® Socket LGA1700 for 13th Gen Intel®
Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support
list.
** Intel® Turbo Boost Max Technology 3.0
support depends on the CPU types.
|
| 晶片組 |
Intel® B760 Chipset |
| 記憶體 |
4 x DIMM slots, Max. 128GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
* Supported memory types, data rate(Speed),
and number of DRAM module vary depending on the CPU and memory configuration,
for more information refer to www.asus.com for memory support list.
* Refer to www.asus.com for the Memory QVL
(Qualified Vendors Lists).
|
| 顯示晶片 |
1 x DisplayPort**
1 x HDMI®***
* Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in
DisplayPort 1.4
*** Support 4K@60Hz as specified in HDMI
2.1.
|
| 擴充槽 |
Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot(s)
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 4.0 x1 slots
- To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/ for the list of
supported peripherals. |
| 資料儲存應用 |
Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports
SATA RAID 0/1/5/10.
|
| 區域網路 |
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
|
| Wireless & Bluetooth |
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between
countries. |
| USB連接埠 |
- Rear USB (Total 9 ports)
- 1 x USB 3.2 Gen 2x2 port(s) (1 x USB
Type-C®)
- 1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
- 3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x
USB Type-C®)
- 4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2 connector (supports USB
Type-C®)
- 1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 header supports additional 4
USB 2.0 ports
|
| 音效 |
- ROG SupremeFX 7.1-Channel High
- Definition Audio CODEC S1220A
- - Impedance sense for front and rear
- headphone outputs
- - Supports: Jack-detection,
- Multi-streaming, Front Panel Jack-retasking
- - High quality 120 dB SNR stereo playback
- output and 113 dB SNR recording input (Line-in)
- - Supports up to 32-Bit/192 kHz playback*
- Audio Features
- - SupremeFX Shielding Technology
- - Savitech SV3H712 AMP
- - Premium audio capacitors
- - Audio cover
- * Due to limitations in HAD bandwidth,
- 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
|

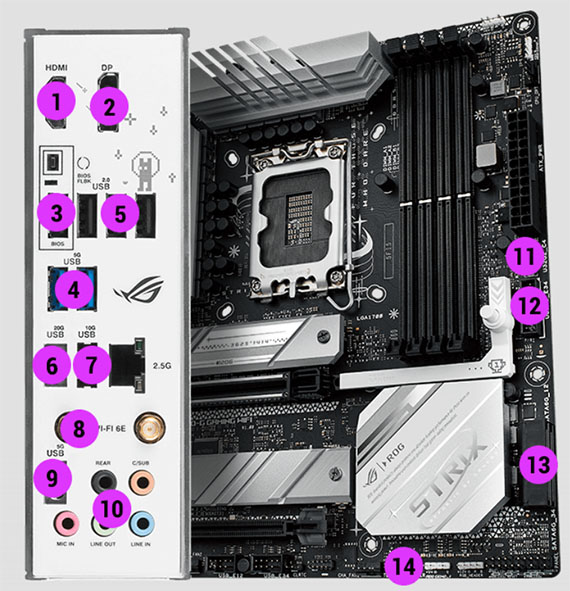

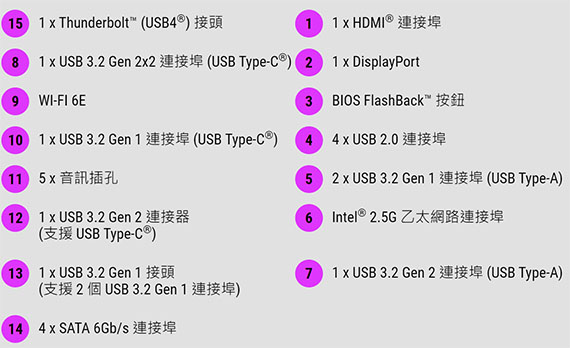

| 後面板輸出端子 |
- 1 x USB 3.2 Gen 2x2 port(s) (1 x USB
Type-C®)
- 1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
- 3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x
USB Type-C®)
- 4 x USB 2.0 port(s) (4 x Type-A)
- 1 x HDMI® port
- 1 x DisplayPort
- 1 x Wi-Fi Module
- 1 x Intel® 2.5Gb Ethernet
- 5 x Audio jacks
- 1 x BIOS FlashBack™ button
|
| 內建 I/O 連接孔 |
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 2 x 4-pin Chassis Fan header(s)
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2 connector (supports USB
Type-C®)
- 1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4
- USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 header(s)
- 1 x AURA RGB header(s)
- 1 x Clear CMOS header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x 20-3 pin System Panel header with
- Chassis intrude function
- 1 x Thermal Sensor header
- 1 x Thunderbolt™ (USB4®) header
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| 配件 |
- Cables
- 2 x SATA 6Gb/s cables
- Additional Cooling Kit
- 1 x Thermal pad for M.2
- Miscellaneous
- 1 x ASUS Wi-Fi moving antennas
- 1 x Cable ties pack
- 1 x Rubber Package(s) for M.2
- 1 x Q-Latch package(s) for M.2
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 1 x ROG Strix thank you card
- Documentation
- 1 x User manual
|
| 作業系統 |
Windows® 11, Windows® 10 64-bit |
| 主機板尺寸 |
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
