| 廠牌 |
ASUS華碩 |
| 型號 |

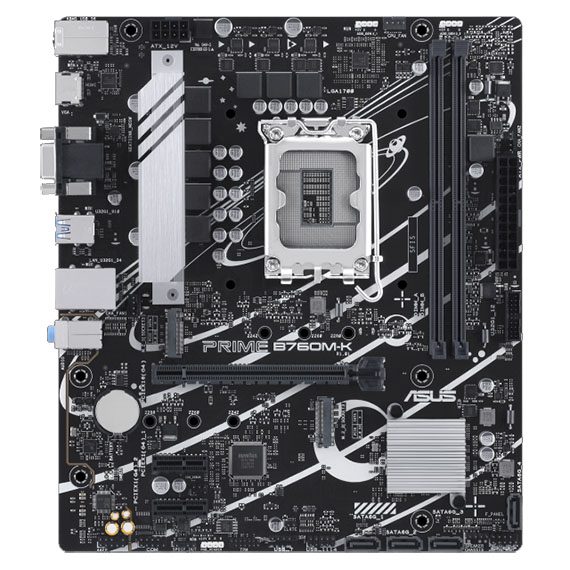

PRIME B760M-K-CSM |
| CPU |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
| Chipset |
Intel® B760 Chipset |
| Memory |
2 x DIMM slots, Max. 96GB, DDR5
8000(OC)/
7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/
6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/
5800(OC)/5600/5400/5200/5000/
4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
|
| Graphics |
1 x VGA port
2 x HDMITM ports**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMITM 2.1.
|
| Expansion Slots |
Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
2 x PCIe 4.0 x1 slot
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
|
| Storage |
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
|
| Ethernet |
1 x Realtek 2.5Gb Ethernet |
| USB |
Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1(5G) ports (4 x Type-A )
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 (5G) headers support 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
|
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
|

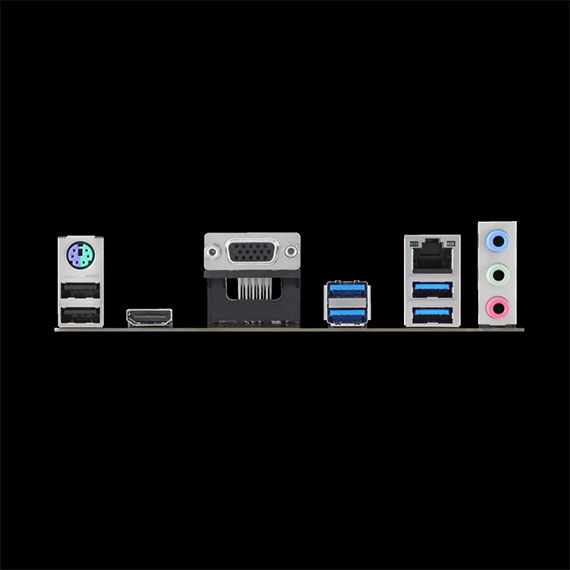

| Back Panel I/O Ports |
- 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x VGA port
- 1 x HDMITM port
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
|
| Internal I/O Connectors |
- Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
- Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
- Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
- USB
1 x USB 3.2 Gen 1(5G) headers support 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
- Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
|
| Special Features |
- ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
- ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
- ASUS EZ DIY
- ProCool
- ASUS Thermal Solution
- VRM heatsink design
- Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
|
| Software Features |
- ASUS Exclusive Software
- Armoury Crate
Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
- AI Suite 3
- DIGI+ VRM
- PC Cleaner
- ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
|
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Accessories |
- Cables
2 x SATA 6Gb/s cables
- Miscellaneous
1 x I/O Shield
2 x M.2 anchors
- Documentation
1 x ACC Express Activation Key Card
1 x User guide
|
| Operating System |
Windows® 11, Windows® 10 64-bit |
| Form Factor |
mATX Form Factor
24.4 cm x 21.1 cm )
|
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
