ASUS華碩 ROG STRIX B850-F GAMING WIFI (ATX/DDR5*4/1H1DP/M.2*4/Intel 2.5G/WIFI7/16+2+2相)

放大原圖上列圖示可能因共同外觀而共用圖示，有Sample字樣者為類別圖式，並非產品圖式。

‧產品特色

AMD B850，4*DDR5 8000+(OC)(MAX.192G)、2*PCIe x16、4*M.2、2*SATA6Gb/s、OnBoard VGA(1*HDMI+1*DisplayPort)、Intel 2.5Gb Ethernet、WiFi 7、藍牙5.4、ROG SupremeFX 7.1CH、介面:1*Type-C 20Gbps、1*Type-C 10Gbps、2*Type-A 10Gbps、4*Type-A 5Gbps、4*USB2.0、2*Audio、ATX、需搭配CPU晶片才能使用內顯功能

		售價	8990
加入購物車

ROG STRIX B850-F GAMING WIFI

雙 ProCool 電源連接器
AMD Socket AM5 適用於 AMD Ryzen™ 9000 & 8000 & 7000 系列桌上型電腦處理器
擴充槽 1 個 PCIe 5.0 x16 安全插槽 [CPU]
1 個 PCIe 4.0 x16 插槽 (x4) [晶片組]
16(80A)+2(80A)+2(80A) 功率級
DDR5 8000+ MT/秒（超頻） 4 個 DIMM
雙通道
4 個 M.2 插槽 1 個 M.2 22110（PCIe 5.0 x4）
1 個 M.2 2280（PCIe 5.0 x4）
2 個 M.2 2280（PCIe 4.0 x4）

VRM散熱器
4 個 M.2 散熱器
一體式幫浦頭
晶片組散熱器
4 x 4 針 PWM 機殼風扇接頭

光環照明
SupremeFX ALC4080 編解碼器 + Savitech SV3H712 AMP

杜比全景聲
3 個 3 針可定址第 2 代 RGB 接頭連接器

1 個顯示埠
1 個 HDMI™ 連接埠
4 個 USB 5Gbps 端口（4 個 A 型）
3 個 USB 10Gbps 端口（2 個 A 型 + 1 個 USB C 型®）
4 個 USB 2.0 連接埠（4 個 A 型）
清除 CMOS 按鈕
BIOS FlashBack™ 按鈕
1 個 USB 20Gbps 端口（1 個 USB Type- C®）
1 個 INTEL ® 2.5Gb 乙太網路端口
無線網路7
光纖 S/PDIF 輸出埠
2 個音訊插孔
1 個 USB 10Gbps 連接器（支援USB Type- C®）
1 個 USB 5Gbps 接頭（支援 4 個 USB 5Gbps 連接埠）
2 個 SATA 6Gb/秒端口

		加入購物車
		售價	8990

‧產品介紹

品牌	ASUS華碩
型號	ROG STRIX B850-F GAMING WIFI
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
晶片組	AMD B850 Chipset
記憶體	Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)* AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
顯示晶片	1 x DisplayPort 1 x HDMI™ port
擴充槽
資料儲存應用	Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)** M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10
區域網路	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Rear USB (Total 12 ports) Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4
USB連接埠	Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
音效	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover

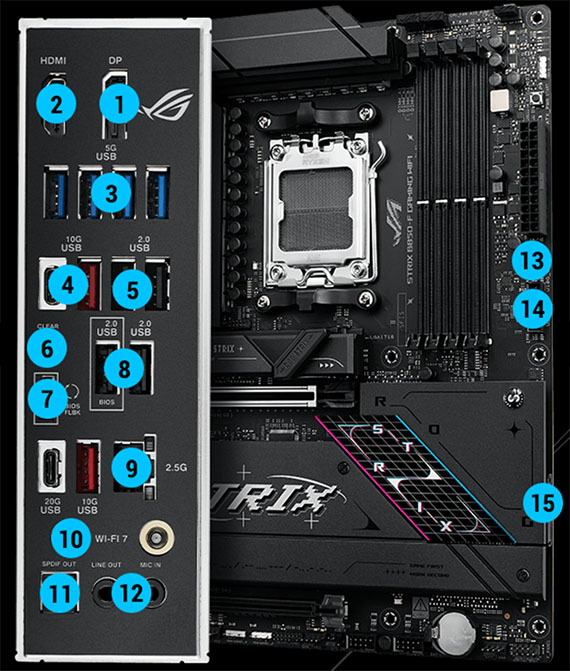

後面板輸出端子	1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
內建 I/O 連接孔	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header
Special Features	Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers
軟體功能	ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
管理能力	WOL by PME, PXE
作業系統	Windows 11
主機板尺寸	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
保固	3年
	※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。 ※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。
