| 品牌 |
ASUS華碩 |
| 型號 |

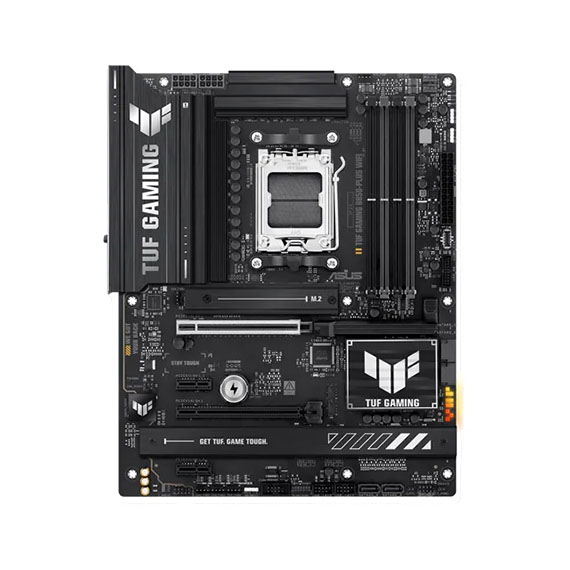

TUF GAMING B850-PLUS WIFI |
| CPU |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset |
AMD B850 Chipset |
| Memory |
- 4 x DIMM slots, max. 192GB, DDR5
- Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
|
| Graphics |
1 x DisplayPort
1 x HDMI™ port
|

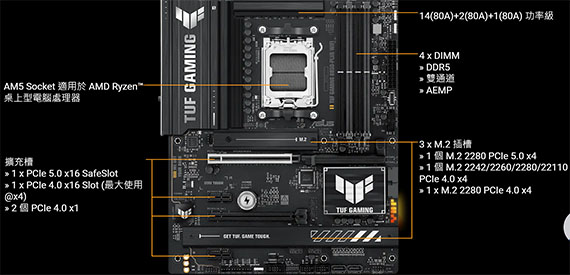

| Expansion Slots |
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- AMD B850 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 2 x PCIe 4.0 x1 slots
|
| Storage |
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)
- AMD B850 Chipset
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
- 4 x SATA 6Gb/s ports
- AMD RAIDXpert2 Technology
- Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- Ryzen™ 8000 Series Processors: RAID 0/1
- Ryzen™ 7000 Series Processors: RAID 0/1/10
|
| Ethernet |
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
|
| Wireless & Bluetooth |
- Wi-Fi 7
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
- Bluetooth® v5.4
|
| USB |
- Rear USB (Total 10 ports)
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (3 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
|

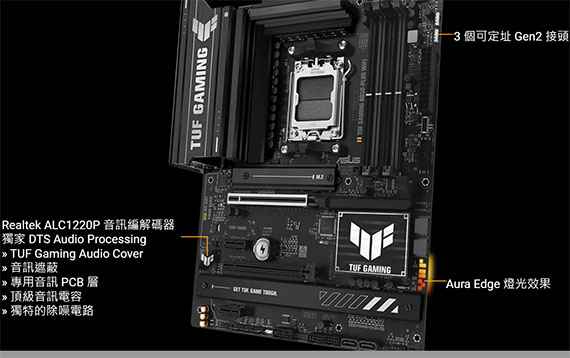

| Audio |
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
- Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
|

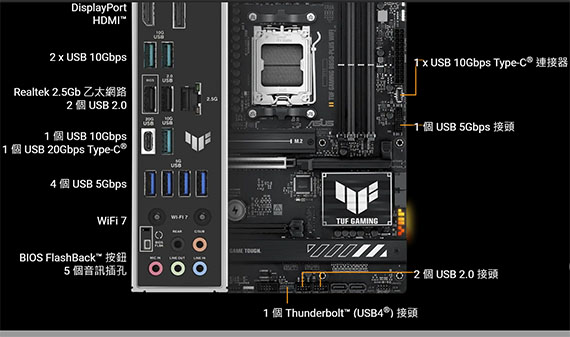

| Back Panel I/O Ports |
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (3 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x BIOS FlashBack™ button
|
| Internal I/O Connectors |
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- Power Related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V CPU Power connectors
- Storage Related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 10Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x 10-1 pin Front System Panel header
- 1 x Thunderbolt™ (USB4®) header
|
| Special Features |
- ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
- ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

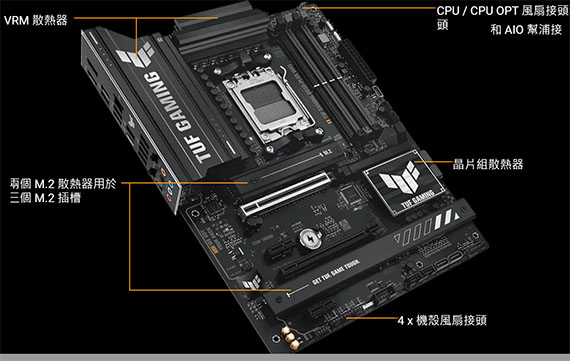

- ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
- ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
- Aura Sync
- Addressable Gen 2 headers
|
| Software Features |
- ASUS Exclusive Software
- Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- ASUS DriverHub
- ASUS GlideX
- TurboV Core
- TUF GAMING CPU-Z
- DTS Audio Processing
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Operating System |
Windows 11 |
| Form Factor |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。
|
