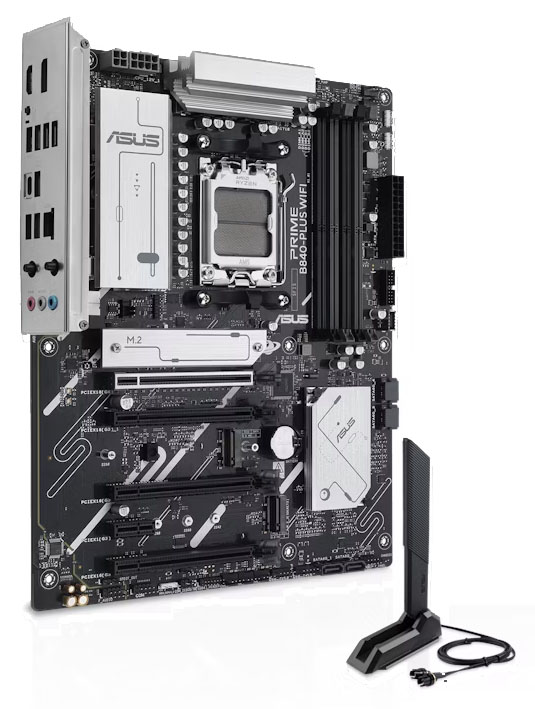

| 廠牌 |
ASUS華碩 |
| 型號 |
PRIME B840-PLUS WIFI-CSM |
| CPU |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset |
AMD B840 Chipset |
| Memory |
- 4 x DIMM slots, max. 192GB, DDR5 Supports up to 7600+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
|
| Graphics |
1 x DisplayPort
1 x HDMI™ port
|

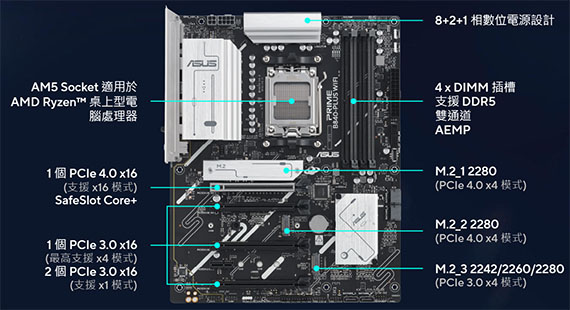

| Expansion Slots |
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x16 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- AMD B840 Chipset
- 1 x PCIe 3.0 x16 slot (support x4 mode)
- 2 x PCIe 3.0 x16 slots (support x1 mode)
- 1 x PCIe 3.0 x1 slot
|
| Storage |
- Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
- AMD B840 Chipset
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode
- 4 x SATA 6Gb/s ports
- AMD RAIDXpert2 Technology
- Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- Ryzen™ 8000 Series Processors: RAID 0/1
- Ryzen™ 7000 Series Processors: RAID 0/1/10
|
| Ethernet |
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
|
| Wireless & Bluetooth |
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3
|
| USB |
- Rear USB (Total 8 ports)
- 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 5Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
| Audio |
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
|

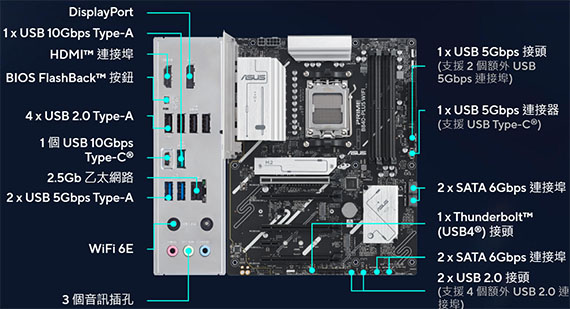

| Back Panel I/O Ports |
- 1 x USB 10Gbps port (1 x USB Type-C®)
- 1 x USB 10Gbps port (1 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button
|
| Internal I/O Connectors |

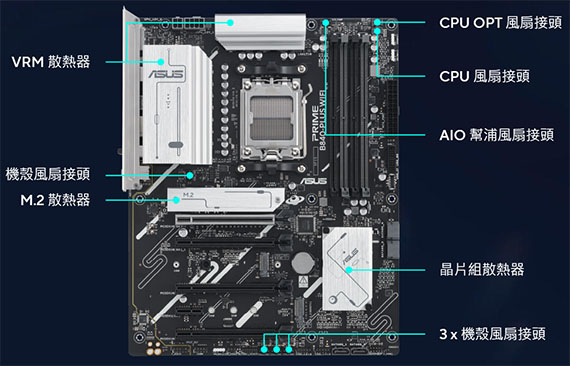

- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan header
- Power Related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V CPU Power connectors
- 1 x 4-pin +12V CPU Power connectors
- Storage Related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 5Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous

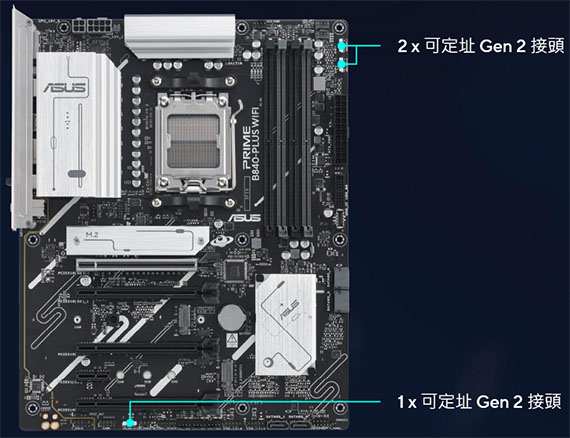

- 3 x Addressable Gen 2 headers
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1 pin)
- 1 x 10-1 pin System Panel header
- 1 x Thunderbolt™ (USB4®) header
|
| Special Features |
- ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot core+
- Stainless-steel back I/O
- ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
- ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
- ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Pre-mounted I/O shield
- SafeSlot core+
- Aura Sync
- Addressable Gen 2 headers
|
| Software Features |
- ASUS Exclusive Software
- Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- ASUS Driver Hub
- ASUS GlideX
- TurboV Core
- ASUS CPU-Z
- Adobe Creative Cloud (Free Trial)
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Operating System |
Windows® 11, Windows® 10 64-bit |
| Form Factor |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
