| 廠牌 |
ASUS華碩 |
| 型號 |

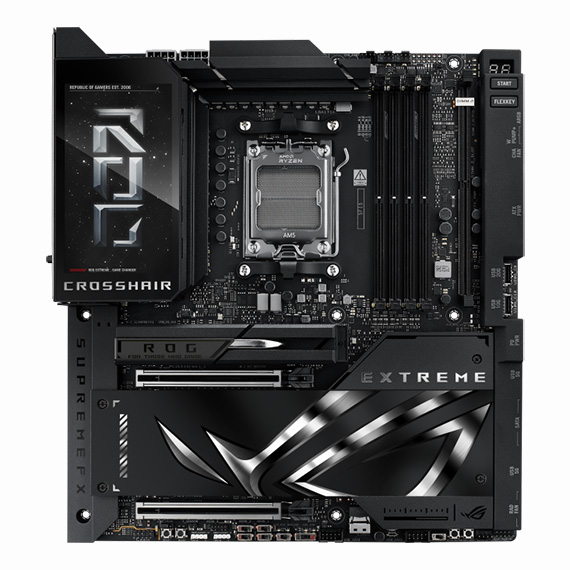

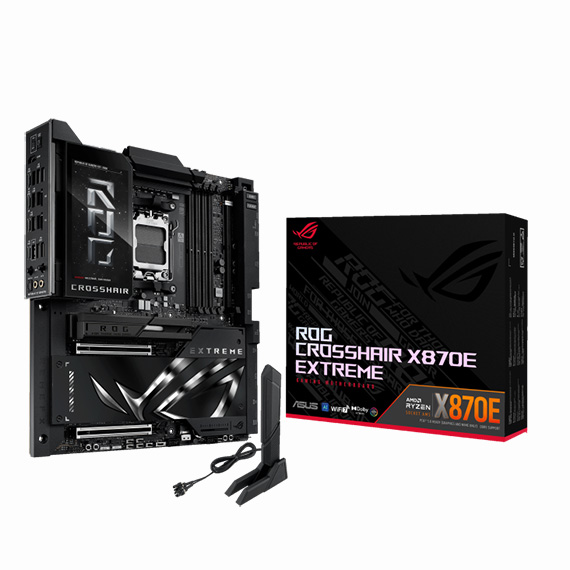

ROG CROSSHAIR X870E EXTREME |
| 中央處理器 |
適用於 AMD Ryzen™ 9000 和 8000 和 7000 系列桌上型電腦處理器的 AMD Socket AM5*
* 有關 CPU 支援列表，請參閱 https://www.asus.com/support/download-center/。 |
| 晶片組 |
AMD X870E |
| 記憶體 |
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
9000+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
NitroPath DRAM Technology
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under theSupport tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| 顯示晶片 |
1 個 HDMITM 連接埠**
2 個 USB4 ® (40Gbps) 連接埠支援 USB Type-C ®顯示輸出***
* 顯示卡規格可能因 CPU 類型而異。請參考 AMD CPU 規格。
** 支援 HDMI 2.1 中指定的 4K@60Hz。
***支援 DisplayPort 1.4a 中指定的最大 4K@60Hz
**** VGA 解析度支援取決於處理器或顯示卡的解析度。 |
| 擴充槽 |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, PCIEX16(G5)_1 and PCIEX16(G5)_2 will run x8.
***When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4.
**** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled.
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported |
| 資料儲存應用 |
Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.
4 x SATA 6Gb/s ports
* When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled.
** When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4, M.2_2 will be disabled.
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| 區域網路 |
1 x Realtek 5Gb 乙太網路
1 x Marvell ® AQtion 10Gb 乙太網路
ASUS LANGuard |
| 無線和藍牙 |
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
支援 2.4/5/6GHz 頻段**
支援 Wi-Fi 7 320MHz 頻寬，傳輸速率高達 6.5Gbps。
藍牙® v5.4***
*Wi-Fi 功能可能會因作業系統而異於
Windows 11，Wi-Fi 7 需要 24H2 或更高版本才能完整功能，Windows 11 21H2/22H2/23H2 僅支援 Wi-Fi 6E。
對於 Windows 10，請注意沒有可用的驅動程序，有關詳細信息，請參閱 Wi-Fi 晶片組供應商的網站。
** Wi-Fi 6GHz 頻段和頻寬監管可能因國家而異。
*** 藍牙®版本可能有所不同，有關最新規格，請參閱 Wi-Fi 模組製造商的網站。 |
| USB連接埠 |
後置 USB（共 12 個連接埠）
2 個 USB4 ® (40Gbps) 連接埠（2 個 USB Type-C ®）
10 個 USB 10Gbps 連接埠（8 個 Type-A + 2 個 USB Type-C ®）
前置 USB（共 10 個連接埠）
1 個 USB 20Gbps 連接埠 (支援 USB Type-C® with up to 60W PD/QC4+)
1 個 USB 10Gbps 連接器（支持 USB Type-C ®）
2 個 USB 5Gbps 接頭支持 4 個額外的 USB 5Gbps 端口
2 個 USB 2.0 接頭支持 4 個額外的 USB 2.0 端口
USB Type-C ®供電輸出：最大 5V/3A
*USB Type-C ®供電輸出：5/9/15/20V 最大 3A，PPS:3.3–21V 最大 3A |
| 音效 |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |

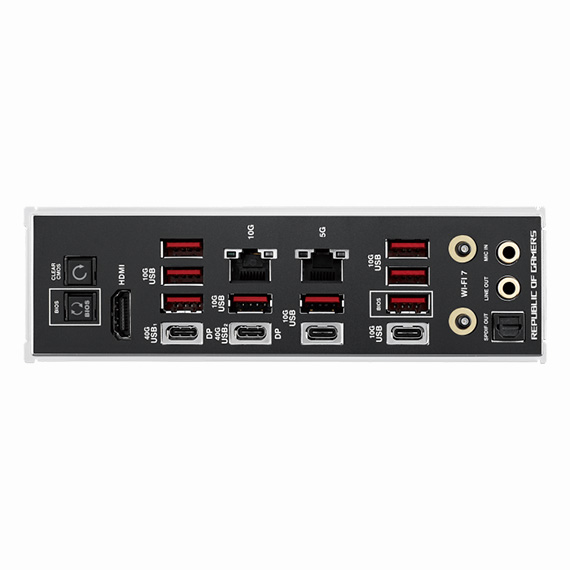

| 後面板輸出端子 |
2 x USB4® ( 40Gbps) 連接埠 (2 x USB Type-C® )
10 x USB 10Gbps 連接埠 (8 x Type-A + 2 x Type-C)
1 x HDMITM 連接埠
1 x Wi-Fi 模組
1 x Realtek 5Gb 乙太網路
1 x Marvell ® AQtion 10Gb 乙太網路
2 x LED照明音訊孔
1 x 光纖S/PDIF連接埠
1 x BIOS FlashBack™ 按鈕
11 x 清除CMOS 按鈕 |
| 內建 I/O 連接孔 |
風扇和冷卻相關
1 x 4-pin CPU 風扇接頭
1 x 4-pin CPU OPT 風扇接頭
1 x 4-pin AIO 泵接頭
5 x 4-pin 機箱風扇接頭
電源相關
1 x 24-pin 主電源連接器
2 x 8 -pin +12V CPU 電源連接器
儲存相關
4 x M.2 插槽 (Key M)
4 x SATA 6Gb/s 連接埠
USB
1 x USB 20Gbps 連接器（支援高達 30W PD/QC4+ 的 USB Type-C®）
1 x USB支援 5Gbps 接頭 2 個額外 USB 5Gbps 連接埠
3 x USB 2.0 接頭支援 6 個額外 USB 2.0 連接埠
其他
3 x 可尋址 Gen 2 接頭
1 x 機箱入侵接頭
1 x COM 連接埠接頭
1 x CPU 過壓跳線
1 x前面板音訊接頭連接器 (F_AUDIO)
1 x 10-1 針系統面板接頭連接器
1 x 熱感應器接頭連接器 |
| BIOS |
2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| 可管理性 |
WOL by PME |
| 配件 |
Cables
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cable
2 x ROG weave SATA 6G cable packages
1 x 3-in-1 Thermistor cables pack
ROG Q-DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad package for ROG Q-DIMM.2
2 x Thermal pad for ROG Q-DIMM.2
Additional Cooling Kit
2 x Thermal pad for M.2 22110
1 x DDR5 Fan holder
1 x ROG Fan Kit
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x ROG logo plate sticker
1 x ROG screwdriver
1 x ROG stickers
1 x ROG VIP card
1 x M.2 Q-Slide package
5 x M.2 backplate rubber packages
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide |
| 作業系統 |
Windows®11 |
| 外形尺寸 |
E-ATX Form Factor
12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
