| 廠牌 |
ASUS華碩 |
| 型號 |
ROG STRIX B860-A GAMING WIFI |
| CPU |
Support Intel® Core™ Ultra Processors (Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
|
| 晶片組 |
Intel® B860 Chipset |
| 記憶體 |
- 4 x DIMM slots, max. 256GB, DDR5
- Supports up to 8600+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
- Dual channel memory architecture
- DIMM Fit
- Supports Intel® Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile III(AEMPIII)
|
| 顯示晶片 |
- 1 x DisplayPort**
- 1 x HDMI™ port***
- 1 x USB4® (20Gbps) ports support USB
- Type-C® display outputs
|
| 擴充槽 |
- Intel® Core™ Ultra Processors (Series 2)
- 1 x PCIe 5.0 x16 slot
- Intel® B860 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
|
| 資料儲存應用 |
- Total supports 4 x M.2 slots and 4 x SATA
- 6Gb/s ports*
- Intel® Core™ Ultra Processors (Series 2)
- M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
- Intel® B860 Chipset
- M.2_2 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2280/22110
(supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)**
- 4 x SATA 6Gb/s ports
|
| 區域網路 |
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
|
| Wireless & Bluetooth |
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth® v5.4***
|
| USB連接埠 |
- Rear USB (Total 10 ports)
- 1 x USB4® (20Gbps) port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (2 x Type-A + 1 x USB
Type-C®)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 5 ports)
- 1 x USB 10Gbps connector (supports USB
Type-C®)
- 1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional
USB 2.0 ports
|
| 音效 |
- Realtek ALC1220P 7.1 Surround Sound
- High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz
- playback*
- Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
|

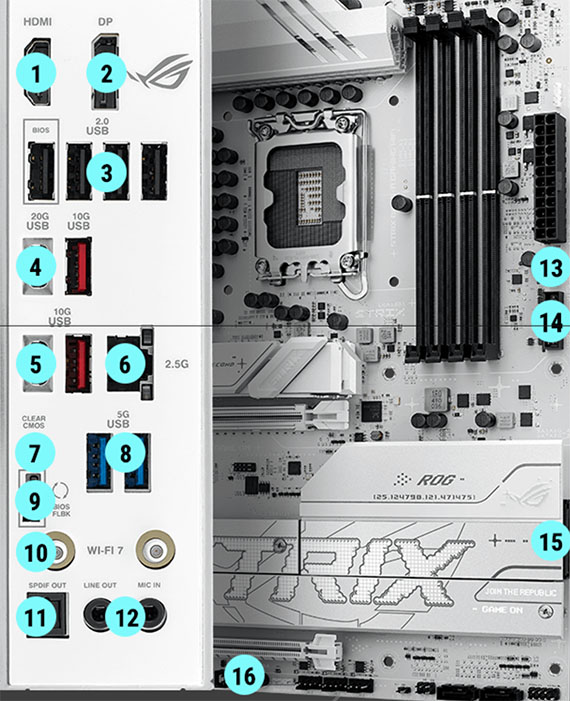

| 後面板輸出端子 |
- 1 x USB4® (20Gbps) port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Intel® 2.5Gb Ethernet port
- 2 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
|
| 內建 I/O 連接孔 |
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- Power Related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V CPU Power connector
- Storage Related
- 4 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 10Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen2 header(s)
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x 10-1 pin Front System Panel header
- 1 x Thermal Sensor header
- 1 x Thunderbolt™ (USB4®) header
|
| Special Features |
- Extreme Engine Digi+
- 5K Black metallic capacitors
- ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
- ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
- Aura Sync
- Addressable Gen2 headers
|
| 軟體功能 |
- ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- ASUS Exclusive Software
- Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- Power Saving
- AIDA64 Extreme (60 days free trial)
- HWiNFO
- ASUS AI Advisor
- ASUS DriverHub
- ASUS GlideX
- TurboV Core
- Adobe Creative Cloud 30 Days Free Trial)
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- AI Overclocking Guide
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
- NPU Boost
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| 管理能力 |
WOL by PME, UEFI PXE |
| 作業系統 |
Windows 11 (22H2 & later) |
| 主機板尺寸 |
ATX Form Factor
30.5 cm x 24.4 cm
|
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
