| 廠牌 |
ASUS華碩 |
| 型號 |
TUF GAMING B860M-PLUS |
| CPU |
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
|
| Chipset |
Intel® B860 Chipset |
| Memory |
- 4 x DIMM slots, max. 256GB, DDR5
- Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
- Dual Channel Memory Architecture
- DIMM Fit
- Supports Intel® Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile III(AEMPIII)
|
| Graphics |
1 x DisplayPort
1 x HDMI™ port
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
|
| Expansion Slots |

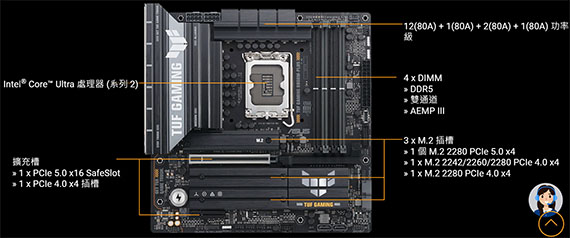

- Intel® CoreTM Ultra Processors(Series 2)*
- 1 x PCIe 5.0 x16 slot
- Intel® B860 Chipset
- 1 x PCIe 4.0 x4 slot
|
| Storage |
- Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
- Intel® CoreTM Ultra Processors(Series 2)*
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- Intel® B860 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
|
| Ethernet |
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
|
| USB |
- Rear USB (Total 8 ports)
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 2 x USB 10Gbps port (2 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 1 x USB 2.0 ports (1 x Type-A)
- Front USB (Total 8 ports)
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 headers support 2 additional USB 2.0 ports
|
| Audio |

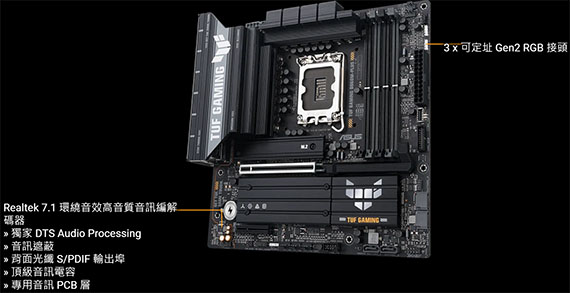

- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
|

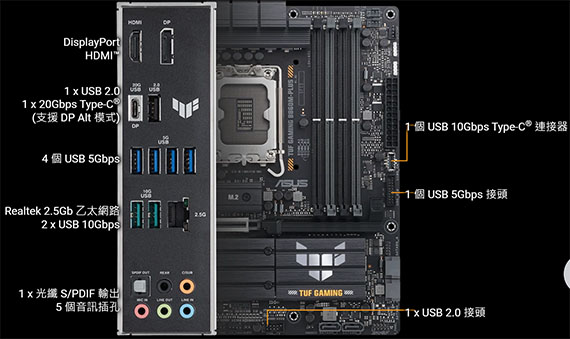

| Back Panel I/O Ports |
- 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
- 2 x USB 10Gbps port (2 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 1 x USB 2.0 port (1 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
|
| Internal I/O Connectors |
- I/O Connectors Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V Power connectors
- Storage related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 10Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x Front panel audio header (F_AUDIO)
- 1 x 10-1 pin Front System Panel header
- 1 x Thunderbolt™ (USB4®) header
|
| Special Features |
- ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Ste
el Back I/O
- ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Rel
ease
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

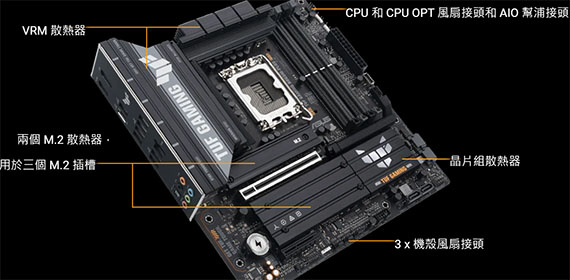

- ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
- ASUS EZ DIY
- CPU Socket lever protec
tor
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
- AURA Sync
- Addressable Gen 2 headers
|
| Software Features |
- ASUS Exclusive Software
- Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
- ASUS DriverHub
- TurboV Core
- TUF GAMING CPU-Z
- DTS Audio Processing
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
- NPU Boost
|
| BIOS |
2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Operating System |
Windows® 11, Windows® 10 64-bit |
| Form Factor |
mATX Form Factor
24.4 cm x 24.4 cm
|
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
