| 品牌 |
ASUS華碩 |
| 型號 |
B860M AYW GAMING WIFI |
| CPU |
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset |
Intel® B860 Chipset |
| Memory |
- 2 x DIMM slots, max. 128GB, DDR5
- Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
- Dual channel memory architecture
- DIMM Fit
- Supports Intel® Extreme Memory Profile (XMP) memory module
- ASUS Enhanced Memory Profile III(AEMPIII)
|
| Graphics |
1 x HDMITM port |

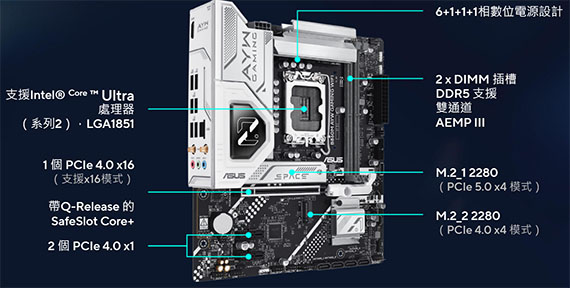

| Expansion Slots |
- Intel® Core™ Ultra Processors (Series 2)
- 1 x PCIe 4.0 x16 slot
- Intel® B860 Chipset
- 2 x PCIe 4.0 x1 slots
|
| Storage |
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
- Intel® Core™ Ultra Processors (Series 2) *
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- Intel® B860 Chipset
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
|
| Ethernet |
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
|
| Wireless & Bluetooth |
- Wi-Fi 6
- 1x1 Wi-Fi 6 (802.11ax)
- Supports 2.4/5GHz frequency band
- Bluetooth® v5.3*
|
| USB |
- Rear USB (Total 6 ports)
- 1 x USB 10Gbps port (1 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 3 x USB 2.0 ports (3 x Type-A)**
- Front USB (Total 7 ports)
- 1 x USB 5Gbps connector (supports USB Type-C®)*
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports**
|
| Audio |
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
|

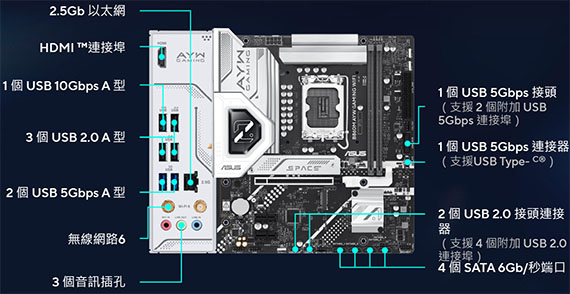

| Back Panel I/O Ports |
- 1 x USB 10Gbps port (1 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 3 x USB 2.0 ports (3 x Type-A)
- 1 x HDMITM port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
|
| Internal I/O Connectors |
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- Power Related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V CPU Power connector
- Storage Related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 5Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous

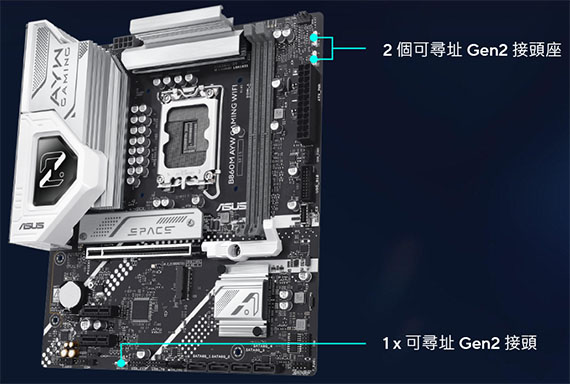

- 3 x Addressable Gen2 headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1 pin)
- 1 x 10-1 pin Front Panel System header
|
| Special Features |
- ASUS 5X PROTECTION III
- DIGI+VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
- ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

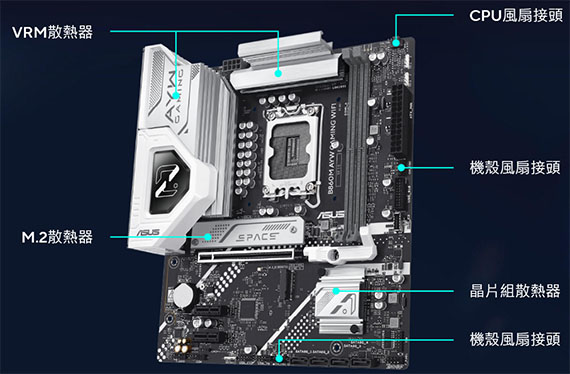

- ASUS Thermal Solution
- M.2 heatsink
- VRM heatsinks design
- ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
- Aura Sync
- Addressable Gen2 headers
|
| Software Features |
- ASUS Exclusive Software
- Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Power Saving
- ASUS AI Advisor
- ASUS DriverHub
- ASUS GlideX
- ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
|
| BIOS |
256(128+128) Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Operating System |
Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later) |
| Form Factor |
micro-ATX Form Factor
24.4cm x 22.2cm |
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
