| 品牌 |
ASUS華碩 |
| 型號 |

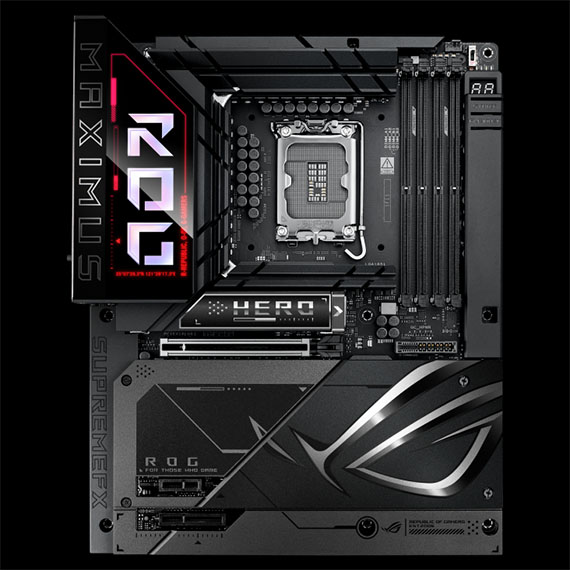

ROG MAXIMUS Z890 HERO BTF |
| CPU |
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
|
| 晶片組 |
Intel® Z890 Chipset |
| 記憶體 |
- 4 x DIMM slots, max. 256GB, DDR5
- Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP) memory module
- Supports DIMM Flex
- NitroPath DRAM Technology
- DIMM FIT
- ASUS Enhanced Memory Profile III (AEMP III)
|
| 顯示晶片 |
1 x HDMI™ port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
|
| 擴充槽 |
- Intel® Core™ Ultra Processors (Series 2)*
- 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**
- Intel® Z890 Chipset
- 1 x PCIe 4.0 x4 slot
- 1 x PCIe 4.0 x1 slot
|
| 資料儲存應用 |
- Supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
- Intel® Core™ Ultra Processors (Series 2) *
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- Intel® Z890 Chipset
- M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
|
| 區域網路 |
1 x Intel® 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
|
| Wireless & Bluetooth |
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
- Bluetooth® v5.4***
|
| USB連接埠 |
- Rear USB (Total 11 ports)
- 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
- 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
- 4 x USB 5Gbps ports (4 x Type-A)
- Front USB (Total 10 ports)
- 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
| 音效 |
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- - Impedance sense for front and rear headphone outputs
- - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- - Supports up to 32-Bit/384 kHz playback on front panel"
- Audio Features
- - SupremeFX Shielding Technology
- - ESS® ES9219 QUAD DAC
- - Gold-plated audio jacks
- - Rear optical S/PDIF out port
- - Premium audio capacitors
|

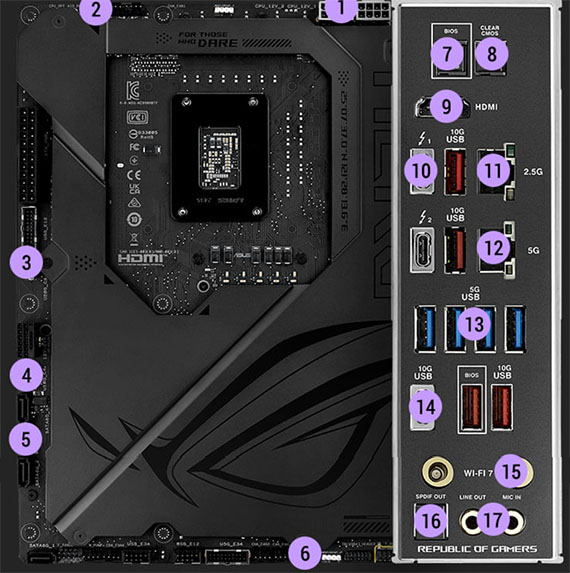

| 後面板輸出端子 |
- 2 x Thunderbolt™ 4 USB Type-C® ports
- 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
- 4 x USB 5Gbps ports (4 x Type-A)
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Intel® 2.5Gb Ethernet port
- 1 x Realtek 5Gb Ethernet port
- 2 x Gold-plated audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
|
| 內建 I/O 連接孔 |
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
1 x Graphics card high power slot
1 x 12V-2X6 Auxiliary power connector
Storage Related
6 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 10Gps connector (supports USB Type-C® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header* |
| Special Features |
- Extreme OC Kit
- - FlexKey button
- - Start button
- Extreme Engine Digi+
- - 10K Black metallic capacitors
- - MicroFine alloy choke
- ASUS Q-Design
- - M.2 Q-Latch
- - M.2 Q-Release
- - M.2 Q-Slide
- - Q-Release Slim (with PCIe SafeSlot)
- - Q-Antenna
- - Q-Code
- - Q-Connector
- - Q-Dashboard
- - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- - Q-Slot
- ASUS Thermal Solution
- - M.2 heatsink backplate
- - M.2 heatsink
- - Metal backplate
- - VRM heatsink design
- ASUS EZ DIY
- - Backplate
- - BIOS FlashBack™ button
- - Clear CMOS button
- - CPU Socket lever protector
- - ProCool II
- - Pre-mounted I/O shield
- - SafeSlot
- - SafeDIMM
- Aura Sync
- - Addressable Gen 2 header(s)
- ROG M.2 PowerBoost
|
| 軟體功能 |
- ROG Exclusive Software
- - ROG CPU-Z
- - Dolby Atmos
- - Polymo Lighting II
- - Internet Security (1-year full version)
- ASUS Exclusive Software
- Armoury Crate
- - AIDA64 Extreme (1 year full version)
- - Aura Creator
- - Aura Sync
- - Fan Xpert 4 (with AI Cooling II)
- - GameFirst
- - Power Saving
- - Hwinfo
- ASUS AI Advisor
- ASUS DriverHub
- ASUS GlideX
- Thunderbolt™ Share
- TurboV Core
- Adobe Creative Cloud (Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- NPU Boost
- AI Overclocking Guide
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash
- - ASUS UEFI BIOS EZ Mode
- - ASUS MyHotkey
- FlexKey
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| 管理能力 |
WOL by PME |
| 作業系統 |
Windows 11 (22H2 & later) |
| 主機板尺寸 |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
