| 廠牌 |
MSI微星 |
| 型號 |

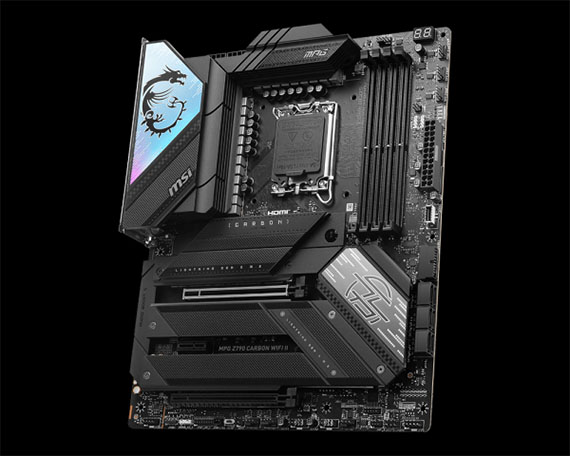

MPG Z790 CARBON WIFI II |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700 |
| CHIPSET |
INTEL Z790 |
| MEMORY |
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 7800+ MHz
- 1DPC 2R Max speed up to 6600+ MHz
- 2DPC 1R Max speed up to 6400+ MHz
- 2DPC 2R Max speed up to 5600+ MHz
- Supports Intel® XMP3.0 OC
- Supports Dual-Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory
|
| ONBOARD GRAPHICS |
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz
|
| SLOT |
- 2x PCI-E x16 slot (Qty)
- 1x PCI-E x1 slot (Qty)
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
| STORAGE |
- 5x M.2 (Qty)
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
- 6x SATA 6G (Qty)
|
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
|

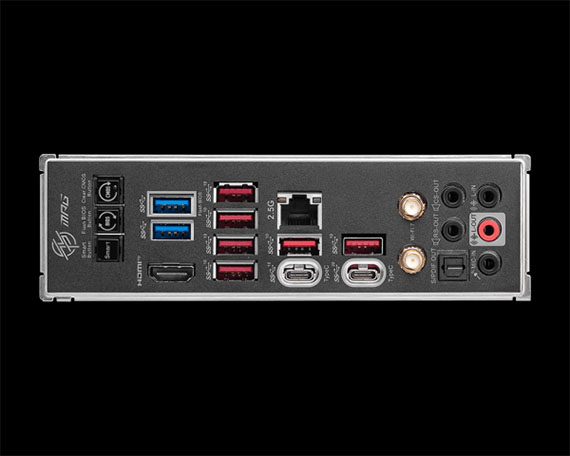

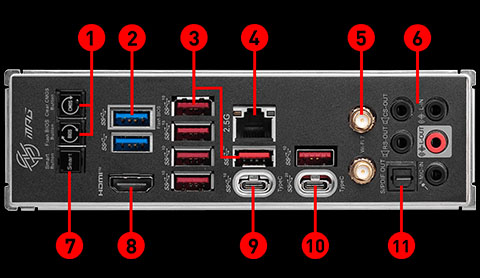

| USB |
- 4x USB 2.0 (Front)
- 2x USB 3.2 Gen1 Type A (Rear)
- 2x USB 3.2 Gen1 Type A (Front)
- 6x USB 3.2 Gen2 Type A (Rear)
- 1x USB 3.2 Gen2 Type C (Rear)
- 1x USB 3.2 Gen2x2 Type C (Rear)
- 1x USB 3.2 Gen2x2 Type C (Front)
|
| LAN |
Intel 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH |
- Wi-Fi 7 Solution
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.4**, MLO, 4KQAM
|
| AUDIO |
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
|
| INTERNAL IO |
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x Pump Fan
- 5x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x TBT connector (JTBT, supports RTD3)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 3.2 Gen1 Type A ports
- 1x USB 3.2 Gen 2x2 Type C ports
- 1x ARGB+FAN Header (JAF_1)
- 1x USB4 card connector (JTBT_U4_1, supports RTD3)
|
| LED FEATURE |
4x EZ Debug LED
1x 2-Digit Debug Code LED
1x EZ LED Control switch
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO |
ATX
243.84mmx304.8mm
|
| 保固 |
3年
|
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
