| 廠牌 |
MSI微星 |
| 型號 |
PRO B760M-B DDR4 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700 |
| CHIPSET |
INTEL B760 |
| MEMORY |
- 2x DDR4, Maximum Memory Capacity 64GB
- Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 4800+ MHz
- 1DPC 2R Max speed up to 4600+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
|
| ONBOARD GRAPHICS |
1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz
|
| SLOT |
- 1x PCI-E x16 slot (Qty)
- 1x PCI-E x1 slot (Qty)
- PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
- PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
|
| STORAGE |
1x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G (Qty)
|
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

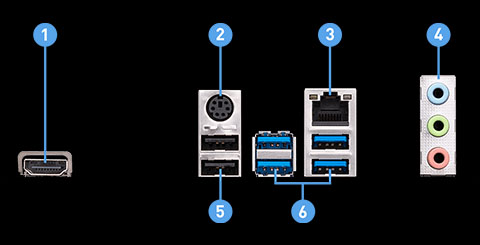

| USB |
- 2x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 4x USB 3.2 Gen1 Type A (Rear)
- 2x USB 3.2 Gen1 Type A (Front)
|
| LAN |
Realtek® RTL8125B 2.5Gbps LAN |
| AUDIO |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
|
| INTERNAL IO |
- 1x Power Connector(ATX_PWR)
- 1x Power Connector(CPU_PWR)
- 1x CPU Fan
- 2x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 3.2 Gen1 Type A ports
|
| LED FEATURE |
4x EZ Debug LED |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO |
mATX
220mmx243.84mm
|
| 保固 |
3年
|
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
