| 品牌 |
MSI微星 |
| 型號 |

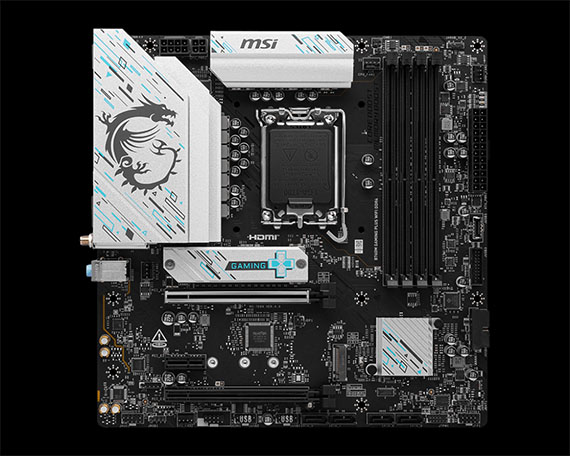

B760M GAMING PLUS WIFI DDR4 |
| Chipset |
INTEL B760 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700 |
| Memory |
- 4x DDR4, Maximum Memory Capacity 128GB
- Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
- Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
- Supports Intel® XMP 3.0 OC
- Supports Dual-Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory
|
| Onboard Graphics |
- 2x HDMI™
- Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
- 2x DisplayPort
- Support DP 1.4, maximum resolution of 4K 60Hz*
|
| Slot |
- 2x PCI-E x16 slot (Qty)
- 1x PCI-E x1 slot (Qty)
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
|
| Storage |
- 2x M.2 (Qty)
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- 4x SATA 6G (Qty)
|
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

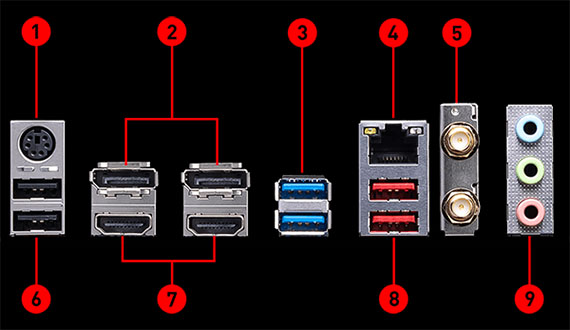

| USB |
- 2x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 4x USB 5Gbps Type A (Front)
- 1x USB 5Gbps Type C (Front)
- 2x USB 10Gbps Type A (Rear)
|
| LAN |
Realtek® RTL8125BG 2.5G LAN |
| Internal IO |
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x Pump Fan
- 2x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 4x USB 5Gbps Type A ports
- 1x USB 5Gbps Type C ports
|
| WIRELESS LAN & BLUETOOTH |
- Intel® Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3, FIPS, FISMA
|
| LED FEATURE |
4x EZ Debug LED |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info |
mATX
243.84mmx243.84mm
|
| 保固 |
3年保固 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。
|
