MSI微星 B850 GAMING PLUS WIFI (ATX/DDR5*4/1DP/M.2*3/Realtek 5G/WiFi7/12+2+1相)

放大原圖上列圖示可能因共同外觀而共用圖示，有Sample字樣者為類別圖式，並非產品圖式。

‧產品特色

AMD B850、4*DDR5 8200+、2*PCIe x16、3*M.2、6*SATA6Gb/s、OnBoard VGA(1*DisplayPort)、Realtek 5G、WiFi 7、介面:2*Type-C 10Gbps、1*Type-A 10Gbps、1*Type-A 5Gbpss、4*USB2.0、2*Audio、1*S/PDIF、ATX、需搭配CPU晶片才能使用內顯功能

		售價	5890
加入購物車

B850 GAMING PLUS WIFI

支援 AMD Ryzen™ 9000 / 8000 / 7000 系列桌上型處理器。
支援 DDR5 記憶體，雙通道 DDR5 8200+ MT/s (OC)
超性能 : 12+2+1 Duet Rail 電源系統並採用雙 8-pin CPU 電源連接埠、Core Boost、Memory Boost、採用 2oz 厚度銅的6層伺服器等級PCB。

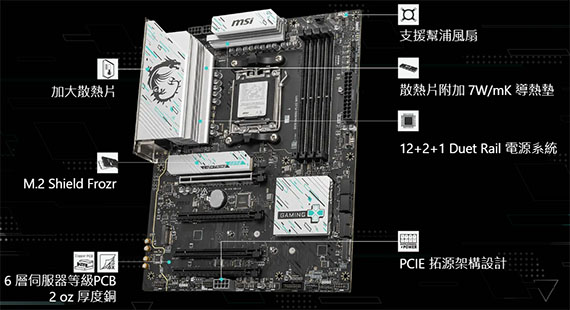

散熱護甲 :延伸加大散熱片、附加 7W/mK 的 MOSFET 散熱墊、附加choke電感散熱墊熱墊以及 M.2 Shield Frozr II，專為高效能系統和持久的使用體驗而設計。

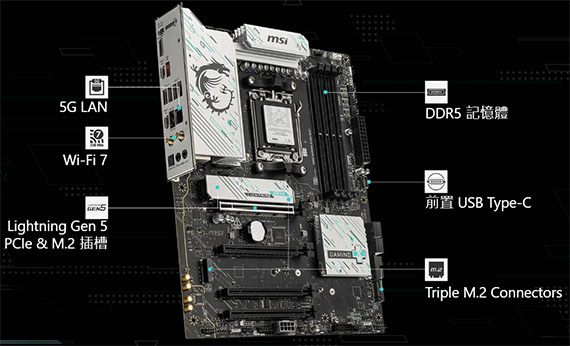

5G LAN 與 Wi-Fi 7 解決方案 - 專業和多媒體用途的最新解決方案，提供安全、穩定、高速的網路和資料傳輸
閃電極速遊戲體驗：PCIe 5.0 插槽、Lightning Gen 5 x4 M.2、Front USB Type-C

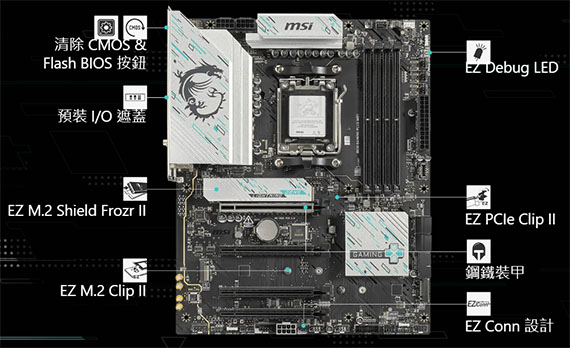

EZ DIY: EZ M.2 Shield Frozr II，EZ M.2 Clip II，EZ PCIe Clip II 和 EZ 天線
AUDIO BOOST: 讓您的耳朵沉浸在錄音室等級的音效品質。

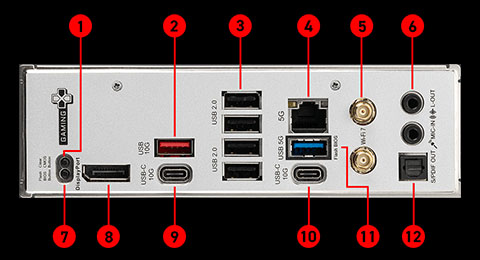

Clear CMOS Button
USB 10Gbps (Type-A)
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
DisplayPort
USB 10Gbps (Type-C)
USB 10Gbps (Type-C)
USB 5Gbps (Type-A)
S/PDIF-OUT

		加入購物車
		售價	5890

‧產品介紹

品牌	MSI微星
型號	B850 GAMING PLUS WIFI
Chipset	AMD B850
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Onboard Graphics	1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz
Slot	4x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
Storage	3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G (Qty) M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear)
LAN	Realtek® 8126VB 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 4x System Fan 1x ARGB+FAN Header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE	4x EZ Debug LED
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB Info	ATX 243.84mmx304.8mm
保固	3年
	※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。 ※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。
