| 品牌 |
MSI微星 |
| 型號 |
PRO B840-P WIFI |
| CPU |
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
|
| Memory |
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
- Ryzen™ 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8000+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPOTM
- Supports Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM, Clock Driver bypass mode only*
|
| Onboard Graphics |
1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
|
| Slot |
- 5x PCI-E x16 slot (Qty)
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)
- PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E1 slot
- Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
|
| Audio |
Realtek® ALC897
7.1-Channel High Definition Audio
|
| Storage |
- 2x M.2 (Qty)
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
- 4x SATA 6G (Qty)
- M2_2 slot
- Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
|
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |

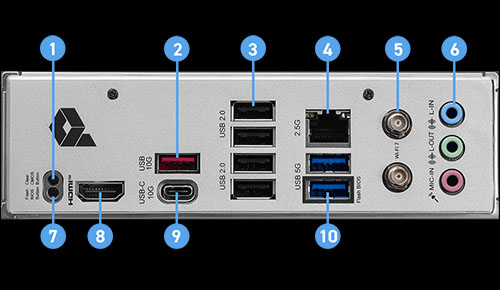

| USB |
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 2x USB 5Gbps Type A (Front)
- 1x USB 5Gbps Type C (Front)
- 1x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Rear)
|
| LAN |
Realtek® 8125D 2.5G LAN |
| Internal IO |
- 1x Power Connector(ATX_PWR)
- 1x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x PUMP_SYS Fan
- 4x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 1x Tuning Controller connector(JDASH)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 5Gbps Type A ports
- 1x USB 5Gbps Type C ports
|
| WIRELESS LAN & BLUETOOTH |
- Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth® 5.4**, MLO, 4KQAM
|
| LED FEATURE |
4x EZ Debug LED |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit |
| PCB Info |
ATX
243.84mmx304.8mm
|
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
