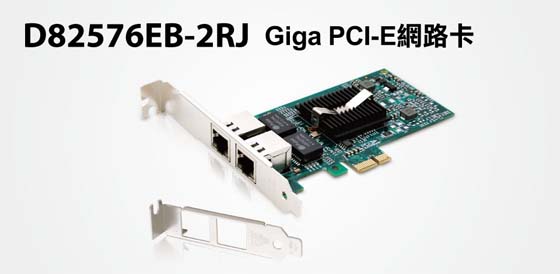

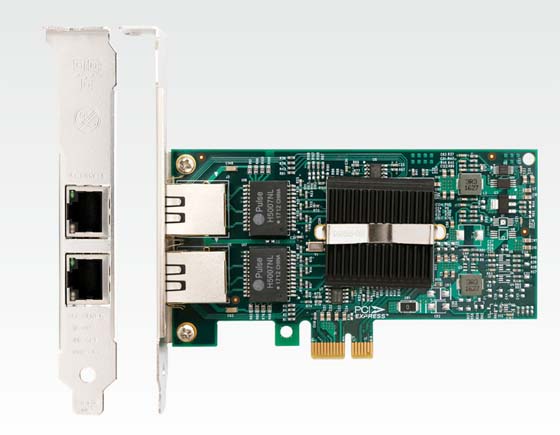

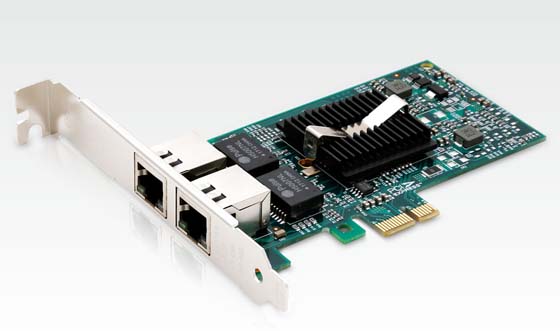

UPMOST登昌恆 Uptech D82576EB-2RJ 2 port Giga PCI-E 網路卡(客訂)

放大原圖上列圖示可能因共同外觀而共用圖示，有Sample字樣者為類別圖式，並非產品圖式。

‧產品特色

PCI-E X1支援1.1,RJ45*2埠,Intel 82576EB晶片,每端口支持的數據速率：10/100/1000 Mbps,MSI-X支持,於Windows環境的可擴展I / O和用於Linux環境（IPv4，IPv6，TCP / UDP）的可擴展I / O,喚醒LAN支持,長/短板設計

		售價	1590
加入購物車

產品圖片

產品介紹

產品特色

產品應用

產品規格

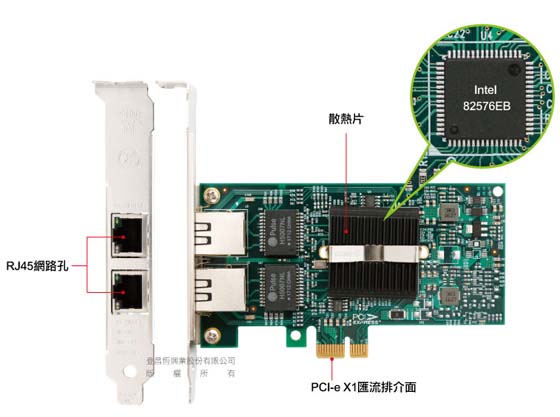

Controller:Intel 82576EB
Bus type: x1lane PCI Express 1.1(2.5GT/s)

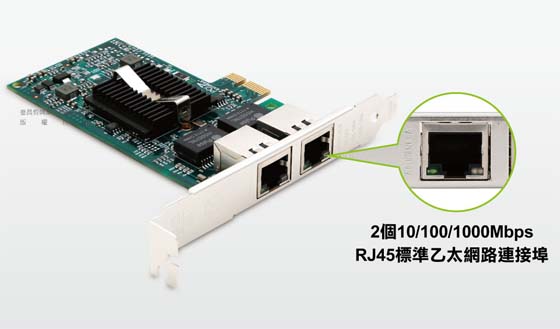

Ethernet ports: 1000Base-T Dualports
Data rate supported per port: 10/100/1000 Mbps
MSI-X support
Tx/Rx IP, SCTP, TCP, and UDP checksum offloading(IPv4, IPv6) capabilities
Tx TCP segmentation offload (IPv4, IPv6)
Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux-environments (IPv4, IPv6, TCP/UDP)
Virtual Machine Device queues2 (VMDq)
VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
PC-SIG SR-IOV Implementation(8 virtual functions per port)
Preboot eXecution Environment (PXE) Support
Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) StatisticCounters>
Wake-on-LAN support
iSCSI Boot
Watchdog Timer
IEEE 1588 precision time control protocol
Optimized for virtualized environments
Flexibility with iSCSI Boot
Plug and play specification support
Intel I/O Acceleration Technology (Intel I/OAT)

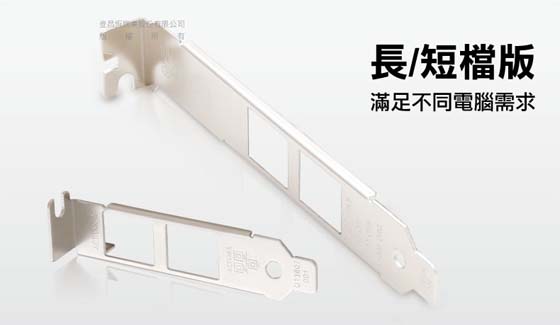

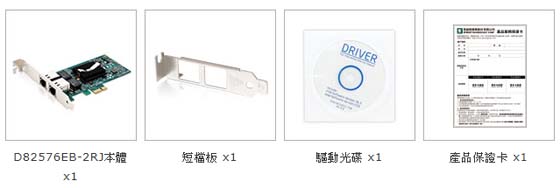

Ships with full-height bracket installed; low-profile bracket included in package
Power consumption (typical): 4.0 W
Storage temperature: -40 to 65Centigrade
Operating temperature :0 to 50Centigrade
Storage humidity: 90% non-condensing relative humidity at 35 Centigrade
