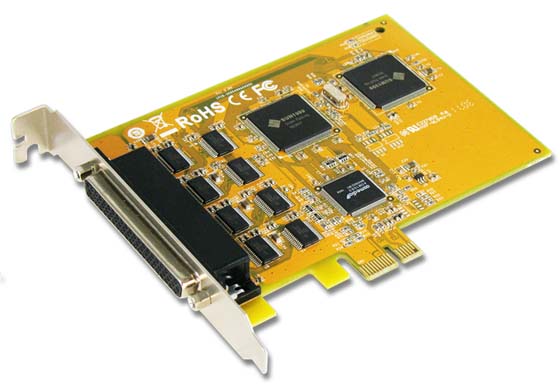

SUNIX SER5466A 8-port PCI-E RS232擴充卡
|
|
放 大 原圖
上列圖示可能因共同外觀而共用圖示,有Sample字樣者為類別圖式,並非產品圖式。
|
‧產品特色 |
RS-232 介面,相容PCI Express x1,x2,x4,x8,x16 lane,8 port RS-232 擴充卡,SUNIX SUN1999(16C950 UART Compatible)晶片,128bytes超大FIFO,速度可達115.2Kbps,隨插即用,支援Windows、Linux和DOS,台灣BSMI認證D33A80,一年保固
|
|
|
|
|
|
|
|
8 埠RS-232 串列 PCI Express卡
三泰SER5466A,PCI Express串行通信板符合PCI Express基本規範1.1修訂版。這是個PCI Express x1,x2,x4,x8和x16通道總線兼容。今天的主板的多數未配備串行端口或只有一個串行端口。通過SUNIX PCI Express串行板,用戶可以添加8個串行端口的系統,使他們進一步使用串行設備。三泰SER5466A卡具有128字節板載FIFO緩存,並與16C950 UART兼容。它的設計與三泰UART控制器,SUN1999並與很多三泰先進的功能和技術,以及建成,使其成為商業和工業自動化應用的最佳解決方案。
產品特色
- Expands 8 independent RS-232 serial ports with communication speeds up to 115.2Kbps.
- High speed SUN1999 16C950 compatible UART controller on-board.
- Designed to meet PCI Express Base Specification Revision 1.1.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
產品圖片
以上規格有任何說明錯誤依原廠公告為主
|
|
|
|
‧產品介紹 |
產品廠牌 |
SUNIX |
型號 |
SER5466A |
Product Description |
8-port RS-232 PCI Express Serial Board |
Interface |
RS-232 |
Controller |
SUNIX SUN1999 (16C950 UART Compatible) |
Bus |
PCI Express one lane (x1) |
No. of Port |
8-port |
IRQ & IO |
Assigned by System |
FIFO |
128 byte (Hardware) |
Signal |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
Baud rate |
50 bps to 115.2 Kbps |
Data bit |
5,6,7,8 |
Stop bit |
1,1.5,2 |
Parity |
None, Even, Odd, Space, Mark |
Flow Control |
None, Xon/Xoff, RTS/CTS |
Protection |
- ±15KV ESD protection for each signal Human Body Model (HBM)
- ±15KV IEC1000-4-2 Air Gap Discharge
- ±8KV IEC1000-4-2 Contact Discharge
|
PCB connector |
DB62 Female |
PCB Dimension |
127 x 98 mm |
Bracket |
Standard 121 mm |
Bracket Space |
1 |
保固 |
1年 |
|
|
|
