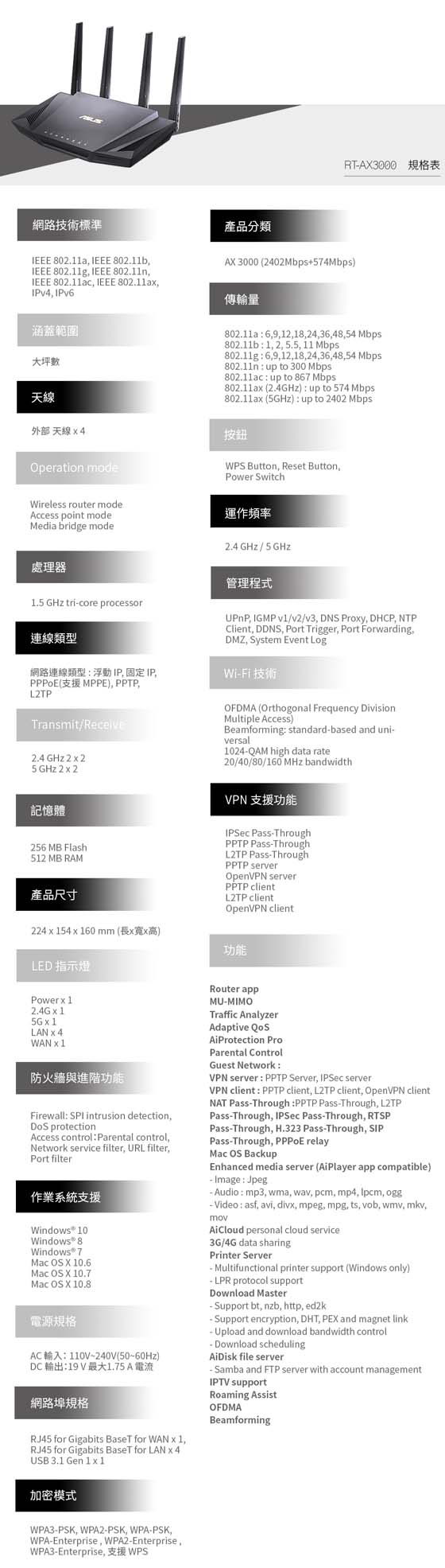

| 廠牌 |
ASUS華碩 |
| 產品型號 |
RT-AX3000 |
| 網路技術標準 |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6 |
| 產品分類 |
AX 3000 (2402Mbps+574Mbps) |
| 涵蓋範圍 |
大坪數 |
| 傳輸量 |
- 802.11a : 6,9,12,18,24,36,48,54 Mbps
- 802.11b : 1, 2, 5.5, 11 Mbps
- 802.11g : 6,9,12,18,24,36,48,54 Mbps
- 802.11n : up to 300 Mbps
- 802.11ac : up to 867 Mbps
- 802.11ax (2.4GHz) : up to 574 Mbps
- 802.11ax (5GHz) : up to 2402 Mbps
|
| 天線 |
外部 天線 x 4 |
| Transmit/Receive |
2.4 GHz 2 x 2
5 GHz 2 x 2 |
| 處理器 |
1.5 GHz tri-core processor |
| 記憶體 |
256 MB Flash
512 MB RAM |
| Wi-Fi 技術 |
- OFDMA (Orthogonal Frequency Division Multiple Access)
- Beamforming: standard-based and universal
- 1024-QAM high data rate
- 20/40/80/160 MHz bandwidth
|
| 運作頻率 |
2.4 GHz / 5 GHz |
| 加密模式 |
WPA3-PSK, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPA3-Enterprise, 支援 WPS |
| 防火牆與進階功能 |
Firewall: SPI intrusion detection, DoS protection
Access control：Parental control, Network service filter, URL filter, Port filter |
| 管理程式 |
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log |
| VPN支援功能 |
- IPSec Pass-Through
- PPTP Pass-Through
- L2TP Pass-Through
- PPTP server
- OpenVPN server
- PPTP client
- L2TP client
- OpenVPN client
|
| 連線類型 |
網路連線類型 : 浮動 IP, 固定 IP, PPPoE(支援 MPPE), PPTP, L2TP |

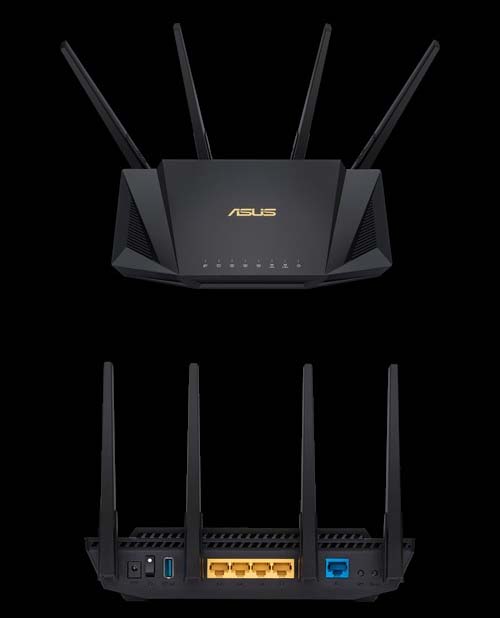

| 網路埠規格 |
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.1 Gen 1 x 1 |
| 功能 |
- Router app
- MU-MIMO
- Traffic Analyzer
- Adaptive QoS
- AiProtection Pro

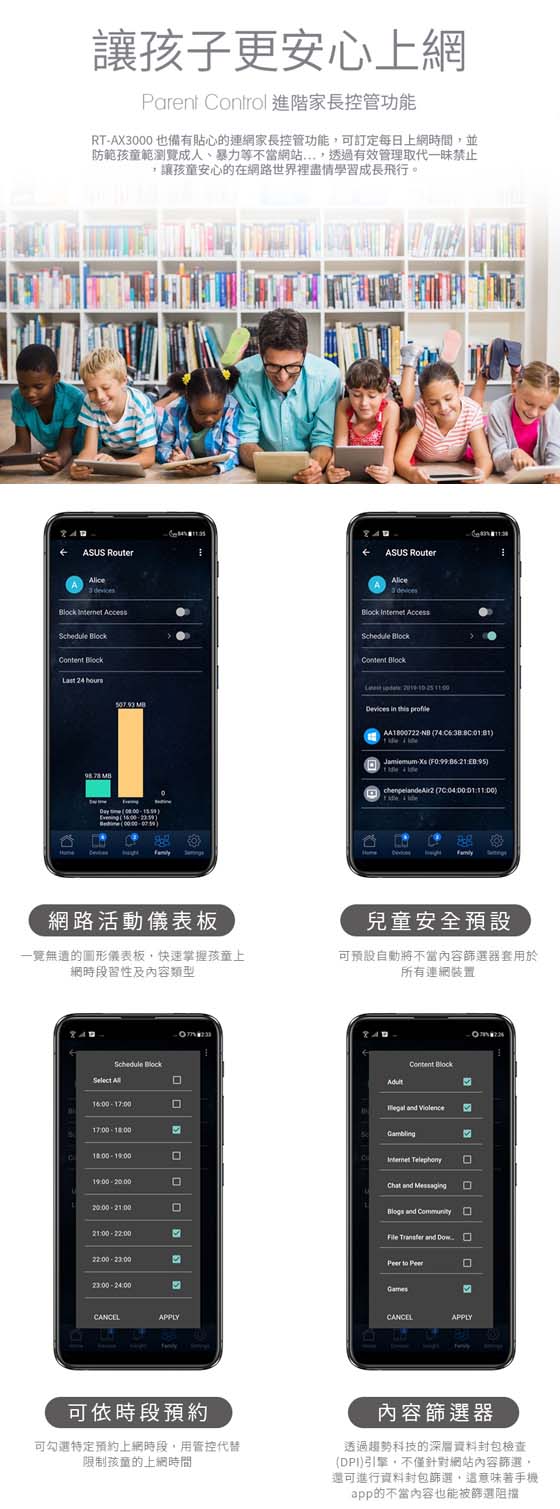

- Parental Control
- Guest Network :
- VPN server : PPTP Server, IPSec server
- VPN client : PPTP client, L2TP client, OpenVPN client
- NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
- Mac OS Backup
- Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
- AiCloud personal cloud service
- 3G/4G data sharing
- Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
- Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
- AiDisk file server
- Samba and FTP server with account management
- IPTV support
- Roaming Assist
- OFDMA
- Beamforming
|
| 按鈕 |
WPS Button, Reset Button, Power Switch |
| LED 指示燈 |
- Power x 1
- 2.4G x 1
- 5G x 1
- LAN x 4
- WAN x 1
|
| 電源規格 |
AC 輸入： 110V~240V(50~60Hz)
DC 輸出：19 V 最大1.75 A 電流 |
| 作業系統支援 |
- Windows® 10
- Windows® 8
- Windows® 7
- Mac OS X 10.6
- Mac OS X 10.7
- Mac OS X 10.8
|
| 產品尺寸 |
224 x 154 x 160 mm (長x寬x高) |
| 保固 |
三年保固
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
|
