| 廠牌 |
ASUS華碩 |
| 型號 |

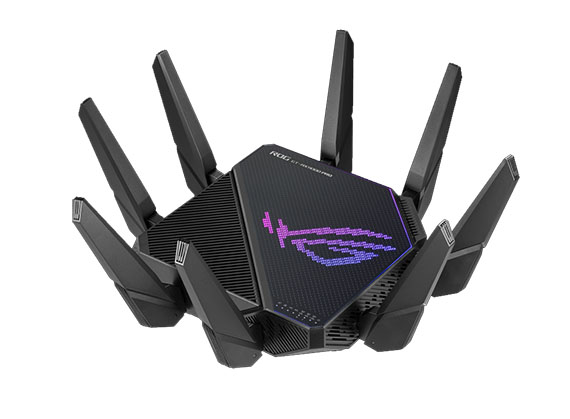

ROG Rapture GT-AX11000 PRO |
|
- 產品區段:AX11000極限AX性能
- AX技術:是
- 天線:External antenna x 8 (non-detachable)
- 處理器:2.0GHz quad-core processor
- 記憶體:256MB NAND flash and 1GB DDR4 RAM
- 網路頻段:Tri-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2
- 按鍵:WPS Button, LED Button, Reset Button, Power Switch
- 路由器應用程式:ASUS Router APP
- Alexa:是
|
| 網路標準 |
IEEE 802.11ax
IPv4
IPv6
|
| 數據速率 |
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, 達1148Mbps
5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, 達4804Mbps
5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, 達4804Mbps
|
| 傳送/接收 |
2.4 GHz 4 x 4
5 GHz-1 4 x 4
5 GHz-2 4 x 4
|
| Wi-Fi技術 |
- OFDMA (Orthogonal Frequency Division Multiple Access)
- Beamforming: standard-based and universal
- 1024-QAM high data rate
- 20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
|

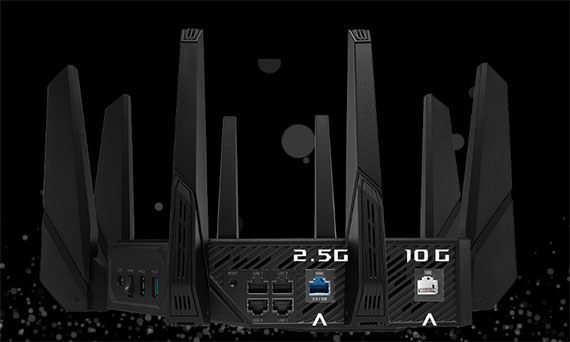

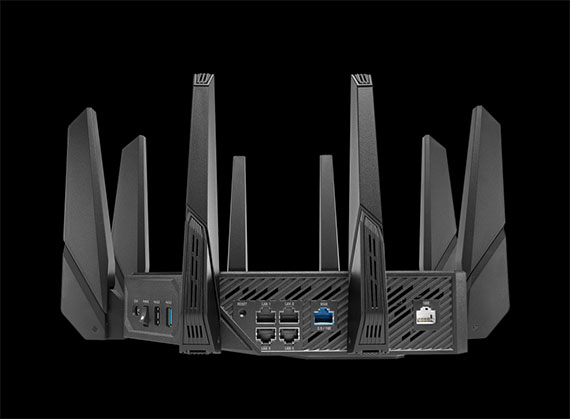

| 連接埠 |
- 1 x 2.5 Gigabit WAN Port
- 1 x 10 Gigabit WAN/LAN Port
- 4 x Gigabit LAN Ports
- 1 x USB 3.2 Gen 1 Port
- 1 x USB 2.0 Port
|
| LED指示燈 |
- Power x 1
- 2.4G x 1
- 5GHz-1 x 1
- 5GHz-2 x 1
- WPS x 1
- 10GE x 1
- LAN x 1
- WAN x 1
|
| 電源 |
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 3.42 A ；19.5 V with max. 3.33 A
|
| 產品內容物 |
- GT-AX11000 Pro WiFi Gaming Router
- RJ-45 Cable
- Power Adapter
- Quick Start Guide
- Warranty Card
|
| AiMesh |
AiMesh
Primary AiMesh router
AiMesh node
|
| 遊戲 |

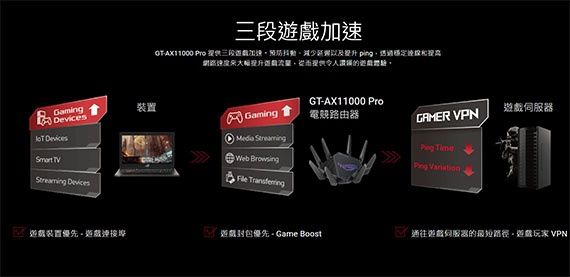

遊戲加速功能
是
ROG設備優先連線功能
具OpenNAT功能
|
| AiProtection |
- AiProtection Pro
- Router Security Assessment
- Malicious site blocking
- Two-Way IPS
- Infected Device Prevention and Blocking
|
| 家長控制 |
Parental Control家長貼心控管
家長貼心控管 - 網路使用排程
Maximum Parental Control profile :
64
Maximum Parental Control content filter rule :
64 |
| 網路流量控管 |
- Adaptive QoS
- Bandwidth Monitor
- Bandwidth limiter
- Maximum Bandwidth limiter rule :
32
- Traditional QoS
- Traffic Monitor
- Real-time traffic monitor
- Wired Traffic Monitor
- Wireless Traffic Monitor
- Traffic Analyzer
- Traffic analysis period :
Daily, Weekly, Monthly
- Website history
|
| 無線相關規格 |
- IPv6
- MU-MIMO
- WiFi Encryption :
WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System
- UTF-8 SSID
- 訪客網路
- Maximum Guest Network rule :
- 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3
- 訪客網路連接限制
- Guest Network Encryption :
- Open system, WPA/WPA2-Personal/WPA3-Personal
- WPS
- Wi-Fi MAC address filter
- Maximum MAC filters :
64
- Wireless scheduler
- Airtime fairness
- RADIUS Server
- Universal beamforming
|
| WAN |
- Explicit beamforming
- Internet connection Type :
- Automatic IP, Static IP, PPPoE, PPTP, L2TP
- Dual WAN

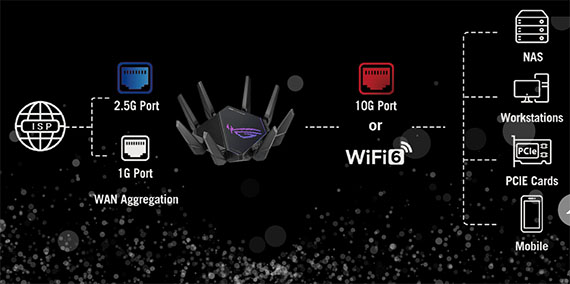

- WAN Aggregation
- 3G/4G LTE dongle
- Android tethering
- Port forwarding
- Maximum port forwarding rule :
64
- Port triggering
- Maximum port triggering rule :
32
- DMZ
- DDNS
- NAT Passthrough :
PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
- Let's Encrypt
- Safe browsing
- DNS-over-TLS
|
| LAN |
- DHCP Server
- IGMP snooping
- IPTV
- LAN Link Aggregation
- Manually assign IP address
- Maximum manually assign IP address rule :
128
|
| VPN |
- VPN Client L2TP
- VPN Client OVPN
- VPN Client PPTP
- VPN Client WireGuard
- VPN Server IPSec
- VPN Server OVPN
- VPN Server PPTP
- VPN Server WireGuard
- VPN Fusion
|
| USB應用 |
- File System :
- HFS+, NTFS, vFAT, ext2, ext3, ext4
- HDD hibernation
- Safely Remove disk
- AiCloud
- Download master
- AiDisk
- Media Server
- Time Machine
- Samba Server
- FTP Server
- Shared Folder privileges
|
| 管理 |
Operating mode :
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
Operating system :
ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter :
64
Maximum Firewall network service filter :
32
Maximum Firewall URL filter :
64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update |
| 保固 |
3年 |
|
※保固期有可能會變更或終止，恕不另行通知，以原廠公佈為準。
※以上規格資料或內附配件若有變更或任何錯誤，恕不另行通知，以原廠所公佈資料為準。 |
